What Is a Reflow Oven? PCB Reflow Soldering Explained
Quick Answer: A reflow oven is a controlled heating system used to solder surface-mount components onto a PCB. The board passes through preheat, soak, reflow, and cooling stages. During reflow, solder paste melts, wets the pads and component terminals, and then solidifies into permanent joints.
Key Takeaways
- A reflow oven melts deposited solder paste through a precise thermal profile to form permanent electrical joints on surface-mount assemblies.
- Proper execution of the four distinct thermal profile stages prevents destructive thermal shock while ensuring complete flux activation and adhesion of the SMT components.
- PCB layout decisions directly govern manufacturing yield, meaning hardware engineers must design with specific thermal behaviors in mind.
Walking onto a factory floor, you will likely notice massive, tunnel-like machines humming at the end of the assembly line. The machines are reflow ovens, which are the final step in attaching surface-mount components (SMT) to a printed circuit board (PCB). Naturally, hardware development requires a solid understanding of how heat turns raw solder paste into solid electrical connections.
What Is a Reflow Oven, and How Does Reflow Soldering Work?
A reflow oven heats populated PCBs according to a highly controlled temperature profile. Inside the reflow oven chamber, solder paste sits trapped between the component terminals and the specific PCB pads. Specifically, surface-mount technology (SMT) assembly relies on controlled heat transfer methods, such as convection, infrared radiation, and vapor-phase heating. The machine forces the paste to melt, wet the joint surfaces, and solidify into a permanent bond during the cooling phase.
To provide context, standard SMT manufacturing follows a very specific workflow:
- Solder Paste Deposition: Stencils apply viscous paste onto bare board pads.
- Component Placement: Pick-and-place machines drop parts directly onto the sticky paste.
- Reflow Soldering: The populated board travels steadily through the heating zones.
- Inspection: Automated optical inspection (AOI) cameras check the finished joints.
Notably, reflow soldering differs entirely from wave soldering, where the bottom of a board drags across a literal wave of molten metal. Reflow soldering also differs from selective soldering, which targets individual through-hole pins with a tiny fountain of liquid solder, while hand soldering relies on a technician wielding a manual iron.
The Four Stages of a Reflow Temperature Profile

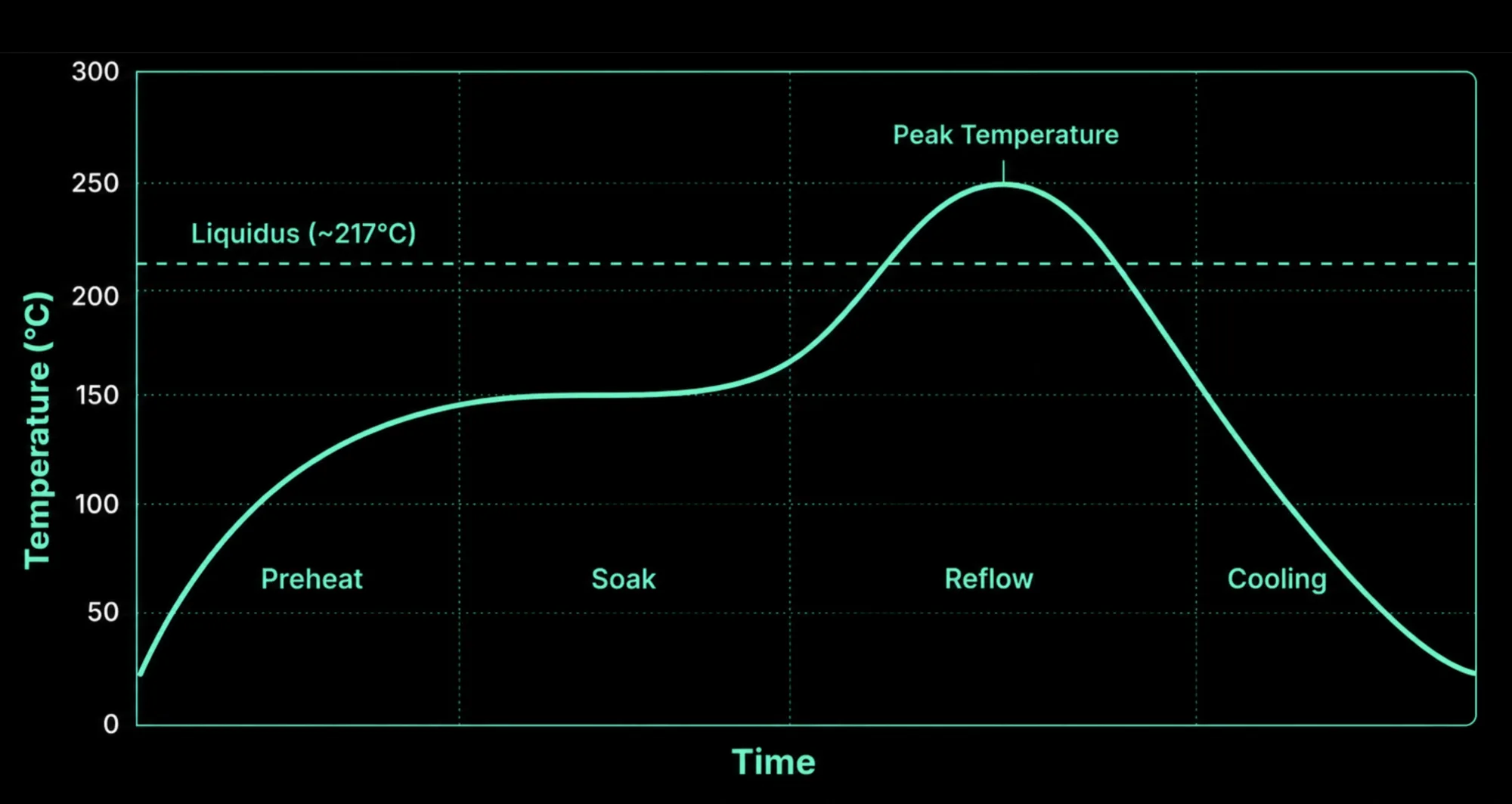

Moving past the basic equipment, the actual thermal journey dictates the reliability of the electrical connection. A reflow temperature profile maps out exactly how the assembly heats up and cools down over time. Industry standards guide engineers in structuring the following four stages:
- Preheat: The machine raises the board and component temperatures gradually. Such a gradual climb prevents thermal shock and begins evaporating solvents from the paste.
- Soak: The oven holds the board at a steady temperature. During a soak stage, the internal chemistry of the flux activates and chemically removes oxidation from copper pads and component leads. Furthermore, holding the environment steady reduces temperature differences between low-mass chips and high-mass connectors.
- Reflow: The temperature exceeds the solder's melting point (liquidus). Wetting occurs as the liquid metal bonds to the pads, though the peak temperature must strictly stay within component material limits.
- Cooling: The solder solidifies as the temperature drops. A specific cooling rate dictates the metallic grain structure and overall mechanical stress. Cooling too rapidly shatters delicate ceramic capacitors, whereas cooling too slowly creates coarse, brittle metallic grains.
Importantly, the oven setpoint rarely equals the actual measured board temperature. Engineers must run a heavily instrumented test board, known as a profile board, through the machine to measure the exact thermal exposure at the component level.
Types of Reflow Ovens and Processes
Depending on production volume, manufacturers employ different heating technologies. The chosen hardware drastically alters how thermal energy transfers to the board surface.
| Heating Method | Typical Use | Main Advantage | Main Limitation |
|---|---|---|---|
| Convection | High-volume production lines | Even heating via forced hot air or nitrogen gas | High energy consumption |
| Infrared (IR) | Older lines or specialized setups | High thermal transfer efficiency | Different component colors absorb heat unevenly |
| Vapor-Phase | Thermally complex assemblies | Guarantees components never exceed the fluid's boiling point | High fluid cost and maintenance requirements |
| Batch Ovens | Prototypes and low-volume work | Small footprint for benchtop operation | Lacks the exact zone control of a conveyor system |
Convection ovens dominate modern factories because forcing heated gas across the board yields highly predictable results. Vapor-phase systems remain highly relevant for military or aerospace boards where overheating expensive parts is simply not an option.
Common Reflow Soldering Defects
Even with excellent equipment, thermal and physical variables occasionally induce manufacturing flaws. Recognizing specific visual errors helps engineers trace defects back to the root causes.
| Defect | Common Cause | Prevention |
|---|---|---|
| Tombstoning | Uneven pad heating or unequal paste volumes pull a small component upright. | Balance pad geometry and thermal reliefs. |
| Solder Bridging | Excess paste causes adjacent pads to connect. | Reduce stencil aperture sizes. |
| Cold Joints | Insufficient heat prevents proper wetting. | Increase the peak temperature or soak time. |
| Voiding | Trapped gas forms empty pockets inside the joint. | Adjust the profile to allow flux volatiles to escape. |
| Component Shifting | Placement errors or aggressive airflow pushes the part. | Verify pick-and-place accuracy and reduce fan speeds. |
| Solder Balling | Oxidation or rapid heating scatters small solder spheres. | Ensure fresh paste and a gradual preheat ramp. |
Consequently, identifying specific defects visually allows factory technicians to halt the line and adjust the thermal profile. However, many manufacturing issues stem directly from the underlying circuit board layout.
How PCB Design Affects Reflow Quality
Accordingly, preventing manufacturing defects starts long before the board reaches the factory floor. Pad geometry heavily influences wetting and component positioning. If a designer routes a massive copper pour directly into one side of a tiny resistor pad, that specific side will heat up significantly slower than the isolated pad. Such a thermal imbalance heavily increases the risk of tombstoning. Furthermore, missing solder mask webs between closely spaced pins allow molten metal to pool together, yielding a dead short.
Additionally, specific layout choices govern deposited solder volume:
- Via-in-Pad: Open vias placed directly inside a surface-mount pad will wick molten solder away from the joint, leaving a starved connection.
- Component Spacing: Placing parts too closely together shadows smaller components from convective airflow and makes rework nearly impossible.
- Paste Layer Design: Incorrect stencil apertures create excessive solder beneath center-pad components like QFNs, causing the part to float and shift out of place.
How Modern PCB Tools Support Reflow-Ready Design
Adhering to strict design rules requires an intelligent software environment. Modern electronics platforms like Flux help engineers keep footprint, placement, solder mask, paste-layer, and revision data connected before a design reaches assembly. By evaluating footprints against standard design guidelines during the layout phase, engineers can avoid the geometry imbalances that cause solder bridging.
Further, automated design-for-manufacturability (DFM) reviews in Flux flag unequal thermal masses early in the process. Such an automated review ensures that when you hand the assembly files over to the contract manufacturer, the board possesses the best possible chance of surviving the thermal profile unscathed. Clear PCB design documentation, including fab notes, assembly drawings, and paste-layer specifications, gives the contract manufacturer an unambiguous record of every footprint and thermal decision made during layout. Gathering your team in Flux’s collaborative environment allows everyone to verify paste mask constraints simultaneously, catching errors long before generating the final fabrication data.
Ultimately, succeeding with a reflow oven requires tight coordination between your physical layout and the factory's thermal profile. Building reliable hardware means trusting your footprint geometries and paste mask definitions implicitly. Start designing your next surface-mount assembly in Flux today to ensure every joint solders flawlessly.
FAQs
A reflow oven is a heating machine used in electronics manufacturing to melt solder paste and attach surface-mount components to a printed circuit board.
The reflow soldering process works by applying solder paste to bare pads, placing components onto the paste, and passing the entire assembly through a controlled heating environment to form solid electrical connections.
The four stages of a reflow profile are preheat, soak, reflow, and cooling.
Time above liquidus refers to the specific duration during which the solder remains in a molten, liquid state before cooling back into a solid.
Tombstoning happens when one end of a small component wets and pulls before the other end, forcing the part to stand up vertically. Uneven thermal mass between pads usually causes tombstoning.
Reflow soldering melts pre-deposited paste using hot air or vapor, whereas wave soldering drags the bottom of a bare board over a flowing bath of liquid metal.
PCB layout decisions like pad sizes, trace widths, and thermal reliefs dictate how quickly each specific joint heats up, directly impacting the final solder quality.
