Design for Manufacturing: How to Move from Prototype to Production

Engineering a functional circuit board on a laboratory bench is a significant milestone in the design process. However, proving a circuit works under controlled conditions does not guarantee the design can be manufactured at scale. Scaling hardware requires a planned engineering transition phase. More specifically, engineers must adapt the layout, standardize the components, and generate exact instructions for the fabrication facility. Navigating the journey from prototype to production requires adherence to industry standards, rigorous design reviews, and structured validation stages.

Understanding the gap between creating a single working unit and producing thousands of reliable units prevents fabrication delays. By integrating specific design rules and manufacturing checks into the workflow early, hardware teams can create a smooth transition from the engineering lab to the factory floor.

Key Takeaways

• Design for manufacturing techniques reduce assembly errors, lower fabrication costs, and increase long-term hardware reliability.
• A complete manufacturing package prevents communication failures between design engineers and fabrication houses.
• Executing structured pilot production builds catches yield-limiting issues before hardware reaches high-volume assembly lines.

What Changes Between Prototype and Production?

During the early stages of hardware development, the primary objective is to create and verify the core circuit functionality. For example, engineers utilize oversized components, manual wire modifications, and expensive low-volume fabrication services to prove the underlying electrical logic. Cost, assembly speed, and long-term reliability take a secondary role to basic functionality.

Conversely, production hardware requires strict repeatability, high manufacturing yield, and optimized unit economics. A layout choice that requires two minutes of manual soldering is acceptable on a batch of five prototypes. However, such a manual step becomes financially disastrous when applied to fifty thousand units. As a result, production engineering prioritizes automation, component availability, and minimizing human intervention.

Key Differences Between Prototype and Production Hardware

Moving a design forward requires addressing exact manufacturing constraints. Hardware teams must evaluate panelization strategies, evaluate thermal distribution during automated soldering, and eliminate dependencies on single-source components. Therefore, a successful prototype acts as a baseline, but true production readiness requires an entirely new set of engineering criteria.

Design for Manufacturing (DFM) Best Practices

Design for manufacturing (frequently abbreviated as DFM) is the engineering practice of designing products specifically to optimize the fabrication and assembly processes. The goal of DFM is to reduce manufacturing complexity, lower production costs, and minimize fabrication defects without compromising product performance.

Optimizing manufacturability requires hardware teams to view their layout through the lens of factory machinery. For example, a design might pass all electrical rules checks (ERC) but could still fail on the assembly line due to physical clearance issues. By applying DFM principles, designers ensure fabrication facilities can build the board using standard, cost-effective procedures.

Design for Assembly vs Design for Manufacturing

While closely related, design for assembly (DFA) focuses specifically on the physical process of attaching components to the bare board. DFA ensures pick-and-place machines have adequate mechanical clearance, whereas DFM ensures the bare board itself can be chemically etched and drilled reliably. Both disciplines must be applied simultaneously.

Key DFM Layout Guidelines for Hardware Prototyping and Production

Applying design for manufacturability principles during PCB layout helps reduce assembly complexity, control production costs, and support a smoother transition from prototype builds to high-volume manufacturing.

Standardizing Components:

Minimizing the number of unique component line items reduces assembly cost. Every unique component requires a dedicated feeder on the pick-and-place machine. For example, if a design utilizes a 4.7k ohm resistor and a 5.1k ohm resistor, standardizing both to 4.7k ohms (if the circuit tolerance permits) eliminates one machine setup step.

Optimizing Component Spacing and Orientation

Component placement directly affects soldering quality, assembly accessibility, and production efficiency. For example, components placed too closely together create shadowing effects during wave soldering, leading to dry joints or solder bridging. Moreover, tall components placed directly adjacent to low-profile passives can physically block the pick-and-place nozzle from reaching the board surface. As a result, designers must maintain strict courtyard clearances around all footprints. Additionally, aligning polarized components in the same orientation reduces machine rotation time and minimizes human inspection errors.

Panelization and Depanelization Constraints:

PCB edge design must account for how boards will be grouped during fabrication and separated after assembly. Rather than manufacturing boards individually, fabricators arrange multiple boards on a larger production panel to improve handling and throughput. Engineers must therefore design the board edges to support panelization methods such as V-scoring or mouse bites, also known as breakaway tabs. Sensitive components must also be positioned away from separation lines, since placing ceramic capacitors too close to a V-score can cause them to crack when the boards are snapped apart.

Minimizing Fabrication Defects

PCB routing, pad geometry, and copper distribution must be designed to prevent defects during etching, drilling, and thermal processing. Common fabrication risks include:

• Acid traps: Acute trace angles can retain etching chemicals, causing localized over-etching and weakened copper connections.
• Solder mask slivers: When the mask web between closely spaced pads is too narrow, it may flake off and expose the underlying copper.
• Drill breakout: Insufficient annular rings or poor via-to-trace transitions can cause drilled holes to extend beyond the surrounding copper pad.
• Board warping: Uneven copper distribution can create thermal stress and cause the PCB to deform during high-temperature reflow.

To reduce these risks, designers should use teardrops at via connections, maintain adequate annular ring dimensions, follow minimum solder mask spacing requirements, and balance copper pours across the board.

Design for Manufacturing Readiness Checklist

Build a Complete Manufacturing Package

Scaling a hardware design requires a complete and clearly structured manufacturing package that communicates every fabrication and assembly requirement to the manufacturer. Fabrication and assembly facilities rely entirely on the information provided by the engineering team. If the documentation is missing, ambiguous, or outdated, the manufacturer may produce defective boards or halt the production line to request clarification.

A complete manufacturing package contains all digital files, mechanical drawings, and written instructions required to fabricate the bare PCB and populate it with components.

Gerber Files and Fabrication Data

Gerber files provide the 2D vector data representing every physical layer of the printed circuit board. Each file corresponds to a specific layer (top copper, bottom solder mask, silkscreen, etc.). Modern hardware teams frequently utilize the Gerber X2 format or ODB++ formats, as these file types embed stackup information and layer definitions directly into the file metadata. The package must also include NC Drill files specifying the exact location, diameter, and plating status (PTH vs NPTH) of every hole on the board.

The Bill of Materials (BOM)

The bill of materials is a structured spreadsheet listing every physical component required for the assembly. A production-ready BOM goes beyond a simple list of values. Rather, the document must include exact Manufacturer Part Numbers (MPNs), reference designators, package sizes, and component quantities. Furthermore, a production BOM includes an Approved Vendor List (AVL) and specifies acceptable alternate components to protect the assembly line against sudden supply chain shortages.

The Assembly Drawing

An assembly drawing is a visual document instructing the assembly facility on how to populate the board. Such a document highlights specific mechanical requirements that pick-and-place files cannot convey. The drawing points out pin 1 orientations, indicates which components require manual soldering, identifies fiducial marks for machine vision alignment, and outlines the application of thermal pastes or conformal coatings.

Pick-and-Place (Centroid) Files

Automated assembly machines require a digital map of the board. The pick-and-place file (often called a Centroid file) provides the exact X and Y coordinates, board layer (top or bottom), and rotation angle for the center point of every surface-mount component.

Manufacturing Package Checklist

Validate the Design Before Full Production

Transitioning directly from a benchtop prototype to ordering ten thousand units introduces unacceptable financial risk. Engineers must prove the design works under factory conditions. Validating the product requires moving through structured pilot phases.

The hardware validation process typically involves three distinct stages: Engineering Validation Testing (EVT), Design Validation Testing (DVT), and Production Validation Testing (PVT).

Prototype Manufacturing and Engineering Validation

During the EVT phase, the team transitions from hand-built lab units to initial prototype manufacturing utilizing actual factory processes. The goal of EVT is strictly functional verification.

• Does the board power up?
• Do the sensors meet accuracy requirements?
• Do the high-speed data lines pass signal integrity checks?

The engineering team tests the hardware against the core product specifications, often discovering layout bugs or component thermal issues that require immediate correction.

Design Validation Testing (DVT)

Once the electrical function is verified, the design moves to DVT, where the hardware undergoes environmental and regulatory testing. To evaluate performance under expected operating and handling conditions, engineers subject the boards to thermal chambers, vibration testing, drop testing, and electromagnetic interference (EMI) screening. DVT confirms that the design can withstand its real-world operating environment and meet certification requirements, such as FCC regulations or CE marking.

Pilot Production and Manufacturing Validation

The final stage before full-scale deployment is pilot production, often referred to as PVT (manufacturing validation). During PVT, the engineering focus shifts from the product itself to the factory assembly line. The manufacturer runs a small batch of boards (typically 50 to 200 units) using the exact mass-production tooling, stencils, and test fixtures intended for the final run.

During the pilot run, the team evaluates the PCB assembly process. Engineers monitor the solder paste application, check the thermal profile of the reflow oven, and analyze the First Pass Yield (FPY). The pilot build reveals PCB manufacturing constraints that only appear at volume. For example, a specific component might frequently misalign on the conveyor belt, or an in-circuit test fixture might fail to contact a designated test point.

By executing a pilot production run, hardware teams catch and resolve assembly line bottlenecks before authorizing a high-volume purchase order.

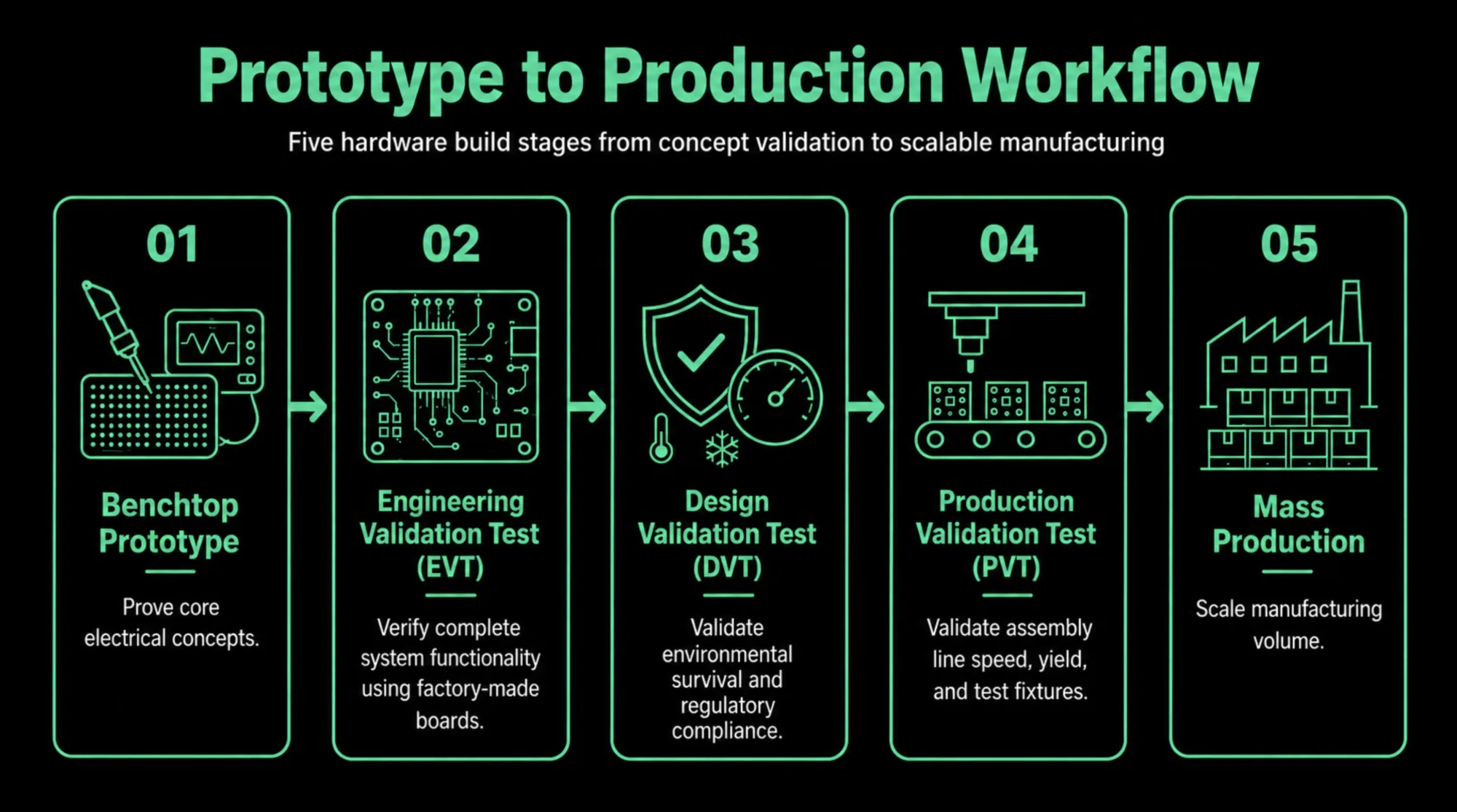

Workflow Diagram: Prototype to Production

Scale to Production with Confidence

Achieving true production readiness signifies that the design, the documentation, and the assembly line are fully optimized. The final step involves selecting a long-term contract manufacturer and establishing strict quality control procedures.

Moving from low volume manufacturing to high volume manufacturing completely changes the relationship between the design team and the factory. In high-volume electronics manufacturing, the contract manufacturer requires predictable, locked documentation. Any mid-production changes require formal Engineering Change Orders (ECOs) and strict revision control. Unmanaged design files cause massive financial loss if a factory inadvertently utilizes an outdated Gerber file or references a deprecated BOM.

Scaling production requires modern tools to maintain coordination across hardware teams. As designs become more complex and involve more contributors, version control, collaborative design reviews, and synchronized component libraries become critical to the development process. Cloud-based engineering platforms provide centralized environments where design engineers, layout specialists, and manufacturing partners can access a single source of truth.

By utilizing modern design tools like Flux, hardware teams can execute automated Design Rule Checks (DRC), manage footprint libraries, and generate validated manufacturing outputs from a unified workspace. Try Flux now to ensure that all revisions are tracked, components are verified, and the transition from prototype to production occurs without costly miscommunications.
