IoT hardware requires careful planning before layout begins. Selecting a system architecture heavily influences long-term project viability. A poorly chosen foundation can create layout problems and software bottlenecks. The following article compares architectural priorities across three major verticals.
Hardware architecture should be driven by product requirements like environmental operating conditions, power budget, and communication needs. For example, engineers sometimes select an appealing microcontroller first, only to realize later that the chip lacks necessary memory or peripheral support. Such a sequence limits design flexibility. Rather, defining environmental constraints, power limits, and communication needs first clarifies the correct path. Once constraints are known, selecting an embedded system architecture becomes a process of elimination rather than a guess.
Because these constraints vary so much from product to product, each category of device ends up with a different set of engineering priorities. For wearable devices, thermal management and battery capacity shape decisions about component size and placement. Industrial equipment often depends on electrical isolation and deterministic timing. Balancing performance, power, connectivity, and cost requires evaluation of the entire system through cross-subsystem analysis rather than isolated parts. Choosing a flexible system architecture before selecting individual resistors and capacitors prevents cascading failures during the prototyping phase.
Settling on a system architecture before locking in individual parts provides a buffer against supply chain shortages. For example, engineers can swap out a specific voltage regulator easily if the overall power architecture remains flexible. Conversely, designing a board around a highly specialized, single-source component creates major manufacturing risks. Setting the high-level architecture first allows teams to identify second-source components early in the design cycle.

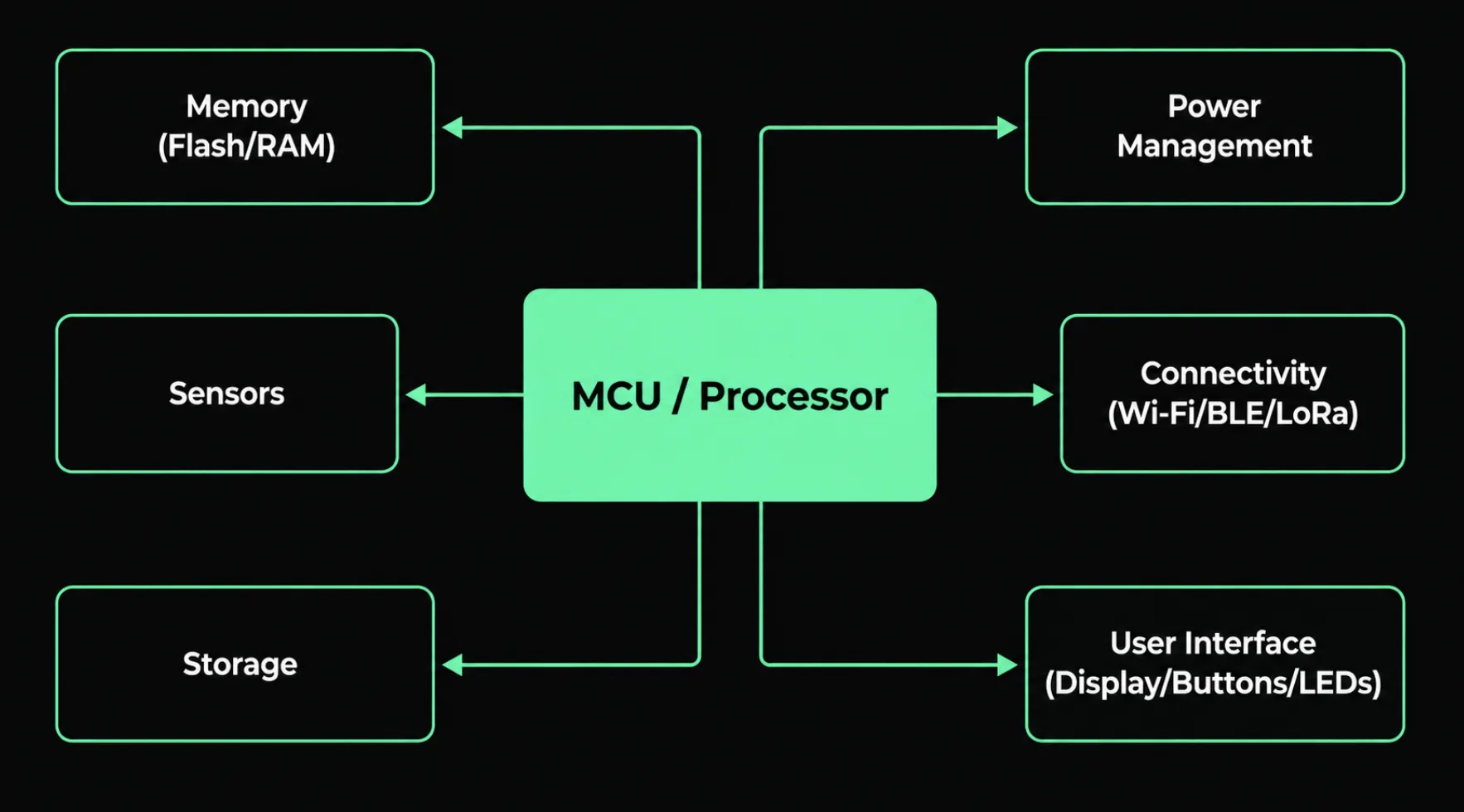

Successful embedded hardware design relies on a standard set of functional units. Microcontrollers, power management integrated circuits, sensors, and memory form the core functional subsystems of most printed circuit boards. Every embedded system architecture combines these core elements differently to achieve the goals of the design. For example, a wearable heart rate monitor and a factory sensor share similar fundamental blocks but require entirely different implementations.
| Subsystem | Typical Components | Primary Function |
|---|---|---|
| Compute | MCU, MPU, FPGA | Executes firmware and handles logic |
| Power | PMIC, LDO, Switching Regulators | Converts and distributes voltage |
| Sensing | IMU, Temperature, ADC | Collects environmental data |
| Connectivity Interface | Wi-Fi, BLE, LoRa, Cellular | Transmits data off-device |
| Storage | Flash, EEPROM, SD Card | Retains non-volatile information |
The compute module acts as the central coordinator for all surrounding subsystems. The module reads sensor data, executes logic, and commands the connectivity interface to transmit payloads. Power management regulates the voltage from batteries or external supplies, so that each subsystem receives stable power. Meanwhile, user interfaces provide feedback through simple LEDs or complex displays.
Memory selection dictates how much data a device can store locally. For example, simple sensors might only require the internal flash memory provided by the microcontroller. However, data-logging devices need external memory interfaces to store months of historical readings. The embedded system architecture should account for the power draw of writing to flash memory, since flash operations consume significantly more current than simple reads.
A robot controller is a real-time embedded system responsible for turning sensor data into precise, time-critical motor commands. Accordingly, a robot controller needs real-time processing: sensor inputs must be translated into motor commands within a consistent, predictable window of time.
Further, operating systems running on the microcontrollers must support strict priority scheduling, meaning time-critical tasks like the motor control loop always run before lower-priority tasks like logging or telemetry. For such systems, deterministic execution—completing a task within the same fixed time window every single time—takes precedence over raw processing speed. This is why engineers often select platforms like STM32 for robotics because of hardware timers capable of generating precise signals for motor control and low interrupt latency.
Specialized actuation and safety hardware are also an integral part of a robot control system. More specifically, motor drivers handle high current loads, while motion control algorithms translate requested trajectories into physical motion. Safety systems require redundant hardware interlocks to cut power instantly during fault conditions. Furthermore, expansion ports (extra GPIO, I2C, or SPI headers) allow developers to attach additional payloads without redesigning the core motherboard.
Robots also depend heavily on sensor fusion, combining data from multiple sensor types (e.g. inertial measurement units, optical encoders, and depth cameras), because a single sensor rarely provides enough reliable data for autonomous navigation. Merging these streams places heavy demands on compute resources and communication bandwidth as the robot control system must continuously process incoming data, calculate corrections, and update the motor drivers many times per second.
For simpler robotic arms or educational robots, engineers often turn to the RP2040 microcontroller. The chip features a programmable input/output subsystem that handles high-speed encoder counting without burdening the main processor. Offloading peripheral management keeps the main control loop running efficiently. The flexibility makes the platform ideal for bridging complex sensor arrays with older industrial motor drivers.
Wearable electronics place the greatest design pressure on size and energy consumption. Longer battery life depends on control of active and sleep states. Wearable device design often uses a low-power microcontroller like the nRF52, which excels at minimizing quiescent current (the small amount of current a chip draws even while idle). Thermal considerations also play a major role, since the human body acts as a heat sink and safety limits restrict device skin temperatures.
Achieving a compact PCB often involves high-density layout techniques. Engineers use high-density interconnects and blind vias to shrink the circuit board footprint. Additionally, designers rely on Bluetooth Low Energy (BLE) to transmit data continuously without draining batteries. Another common power-saving strategy is consolidating radios and compute onto a single system-on-chip, saving board space and further reducing power draw.
Power budgeting becomes especially important when selecting wearable user interfaces. Bright displays drain batteries faster than any other component on the circuit board. Wearable device design often substitutes full-color screens for low-power OLED displays or simple haptic feedback motors. A low-power microcontroller manages the display refresh rate dynamically, pausing updates when the user looks away. Lowering the display refresh rate extends the battery life significantly.
Physical durability presents another major hurdle in wearable device design. Sweat, dust, and continuous movement wear down electronic connections over time. Engineers protect the compact PCB design by specifying conformal coatings and low-profile connectors that withstand daily mechanical stress. The added protection ensures the wearable electronics survive harsh daily conditions without degrading the sensor accuracy.
IoT hardware focuses heavily on networking and remote management. An effective IoT architecture must reliably transmit data from isolated physical environments to centralized cloud servers. A typical IoT deployment follows a similar four-layer architecture, driven by power and bandwidth constraints:
Connectivity: LoRaWAN or Wi-Fi module transmitting encrypted packets.
The environment requires careful selection of connectivity options, such as Zigbee, Wi-Fi, and LoRA, based on range and bandwidth requirements. Zigbee offers excellent low-power mesh networking, whereas Wi-Fi provides high bandwidth at the cost of higher energy use. Similarly, comparing LoRa vs Wi-Fi shows that LoRa excels at long-range communication suitable for agricultural sensors.
Edge Node: Microcontroller gathering local data and running edge AI models.
Edge IoT devices process data locally to reduce transmission bandwidth. Embedded IoT systems capture sensor readings, filter out noise, and only send meaningful anomalies to the cloud. When evaluating the common choices of STM32 vs ESP32 for the edge nodes, the ESP32 often wins for pure connectivity due to the integrated Wi-Fi. Remote deployment also necessitates secure over-the-air firmware updates to patch vulnerabilities over the product lifespan.
Security: Hardware secure element storing cryptographic keys for device authentication.
Security forms the backbone of any reliable IoT hardware design. Edge IoT nodes often sit in public areas, making the physical hardware vulnerable to tampering. Engineers secure IoT hardware by implementing hardware secure elements that store cryptographic keys physically separate from the main processor. The separate storage prevents attackers from extracting sensitive credentials even if the main firmware gets compromised. Secure boot processes verify the firmware signature before the processor executes any code.
Power: Solar harvester paired with a supercapacitor or large primary battery.
Power constraints dictate exactly how embedded IoT architectures process information. Relying exclusively on batteries forces the system to wake up, read a sensor, transmit the data, and return to sleep within milliseconds. Minimizing the active transmission window reduces the overall energy draw. Engineers therefore tune payload size and transmission frequency to match the energy budget of the chosen battery chemistry.
Hardware teams rarely start with a blank schematic. Instead, teams rely on a reference design to validate the chosen processor or sensor combination. A reference design is a proven circuit layout provided by the component manufacturer. Utilizing such layouts reduces technical risk because the manufacturer has already verified the electrical performance.
Prototyping platforms offer a fast way to test software before finalizing the custom hardware. A development board includes the main microcontroller alongside helpful debugging tools, USB interfaces, and breakout pins. An evaluation board typically focuses on a specific peripheral, such as an isolated motor driver or a novel gas sensor. Knowing when to fork an existing hardware design accelerates development while keeping costs low.
Migrating from a development board to a custom layout involves stripping away unnecessary components. Prototyping boards often contain extra voltage regulators, USB-to-serial converters, and debugging LEDs. A commercial reference design excludes the debugging hardware to save cost and space. Engineers analyze the evaluation board schematic, isolate the essential active components, and integrate the active components into the custom printed circuit board.
| Option | Best For | Advantages | Limitations |
|---|---|---|---|
| Development Board | Early firmware testing and proof of concept | Low cost, easy to program, broad community support | Form factor is too large for production enclosures |
| Evaluation Board | Characterizing a specific sensor or power IC | Provides manufacturer-verified performance data | Expensive and usually limited to one specific subsystem |
| Reference Design | Creating the final custom PCB layout | Reduces schematic errors and ensures signal integrity | Requires layout software expertise to adapt |
Choosing a microcontroller before defining requirements creates severe constraints later. Engineers might pick a familiar chip, only to discover the chip lacks the necessary input pins for a new sensor array. Such constraints lead to awkward workarounds like adding external port expanders. A better approach involves calculating total pin counts, memory needs, and power limits before opening the schematic editor.
Selecting the wrong wireless technology frequently causes field failures. Designing an agricultural sensor around Wi-Fi can cause connection problems when the required range exceeds Wi-Fi coverage. LoRa is often better suited to long-range outdoor deployments. Teams must evaluate range, data rate, and power limits simultaneously to prevent a connectivity mismatch.
Copying a reference design without understanding the underlying principles introduces hidden flaws. Manufacturers often tune the layouts for ideal laboratory conditions rather than harsh real-world environments. Copying such circuits can lead to thermal throttling or electromagnetic interference. Engineers should always review the underlying physics and adapt the schematic for the specific application.
Designing for every possible feature in Revision A delays time to market. Hardware teams sometimes try to include extra sensors just in case the software team needs the data later. Adding unneeded components bloats the bill of materials and complicates the layout. Successful teams define a minimum viable product and ignore future expansion until the core functionality works reliably.
Packing powerful processors into small enclosures often causes overheating. Engineers sometimes design the electrical layout without calculating the thermal dissipation. Trapped heat reduces the lifespan of battery cells and forces the microcontroller to slow down processing speed. Proper hardware architecture includes copper planes, thermal vias, and strategic component placement to pull heat away from sensitive areas.
Modern cloud-based electronic design automation tools like Flux speed up hardware development by encouraging design reuse and removing version control roadblocks. Instead of drafting schematics from a blank page, engineering teams can access verified building blocks and collaborate directly within their browser:
On top of those benefits, Flux includes integrated simulation tools that allow designers to test voltage levels and signal integrity directly on the schematic. Verifying analog circuits before ordering physical boards saves weeks of engineering time. The immediate simulation feedback helps engineering teams validate the electrical behavior of new hardware instantly.
Ready to accelerate the next IoT hardware project? Flux provides an intuitive, browser-based platform that simplifies schematic capture and layout. Whether developing an industrial controller or exploring new wearable devices, the collaborative environment helps engineering teams ship products faster. Sign up today to start building.
