Designing for Compliance: PCB Layout Tips for EMI & FCC/CE Testing

Designing for compliance means engineering a printed circuit board from the very first schematic draft to meet electromagnetic compatibility, safety, and other regulatory certification requirements. Yet many hardware teams treat regulatory testing as an afterthought. Incorrectly, teams often build a functional prototype and send the board directly to a certification laboratory.

Such an approach often backfires: a board that fails emissions testing triggers expensive redesigns and pushes back the product launch schedule. The better strategy is controlling electromagnetic energy at the source, through the printed circuit board layout itself. Engineers who carefully manage signal paths, ground return currents, and decoupling networks give their designs a much stronger chance of passing formal certification on the first attempt.

Key Takeaways

• Understanding the exact mechanisms behind radiated and conducted emissions helps engineers avoid basic layout errors before formal testing begins.
• Controlling the return current path through continuous ground planes suppresses electromagnetic interference at the physical board level.
• Identifying trace radiation using near-field probes during pre-compliance development resolves issues before the hardware reaches an expensive certification laboratory.

Why Products Fail Compliance Testing

Electromagnetic compatibility (EMC) testing measures the unintentional radio frequency energy a device generates. Every electrical circuit produces some amount of electromagnetic noise. For example, fast edge rates on digital signals create high-frequency harmonics. The harmonics generated by these fast edge rates radiate into the surrounding environment and/or travel back down the power cables. Consequently, regulatory bodies restrict the emitted energy to prevent interference with other electronics. Devices that exceed such limits fail the certification process immediately.

Conducted vs. Radiated Emissions

Hardware often fails regulatory testing due to poor printed circuit board layout decisions made early in development. A functional prototype does not guarantee a compliant product. When a board fails at an accredited lab, the engineering team must locate the noise source, modify the layout, fabricate new boards, and pay for another round of testing. Such rework costs thousands of dollars. The cycle significantly delays manufacturing schedules. Furthermore, applying temporary fixes like copper tape rarely translates well to high-volume manufacturing.

The Mechanisms of Electromagnetic Interference (EMI) Failure

Uncontrolled return currents act as the primary source of radiated emissions. High-frequency signals require a tight return loop to minimize the generated magnetic field. When the physical layout forces the current into a wide loop, the circuit inadvertently becomes a highly efficient loop antenna.

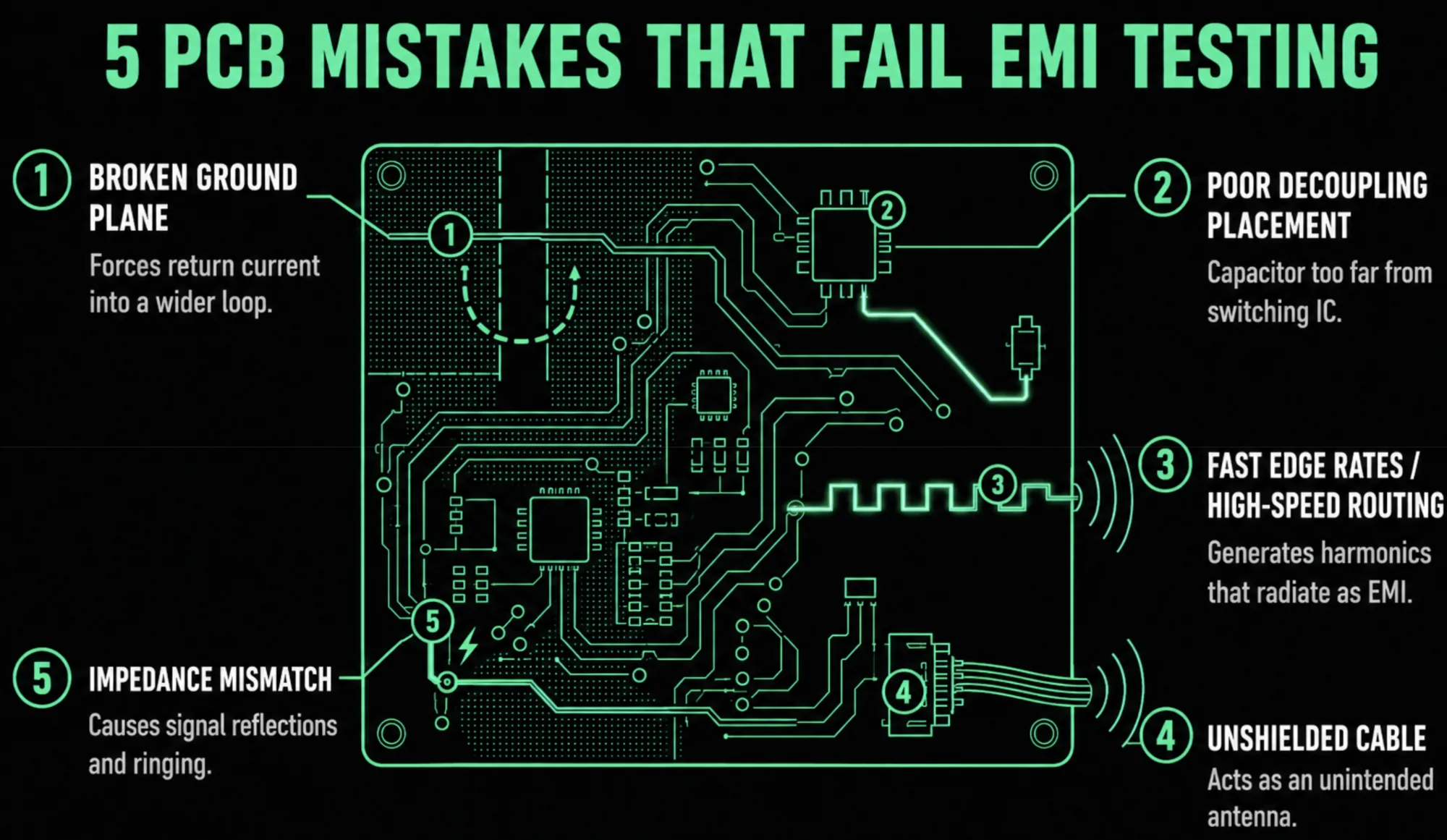

Common causes of regulatory failure include:

• Broken ground planes: Routing a trace over a gap in the reference plane forces the return current to navigate around the obstacle. The longer path dramatically increases the physical loop area.
• Poor decoupling networks: Inadequate capacitance near a switching integrated circuit allows high-frequency noise to propagate across the entire power plane.
• Unshielded cables: Cables connected to the board often pick up internal noise. The cables broadcast the signal into the testing chamber like an external antenna.
• Impedance mismatches: Incorrectly terminated traces cause signal reflections. The reflections create voltage ringing, which generates high-frequency emissions.

Understanding the Physics of EMI

Successful engineering requires understanding how electrical energy behaves at high frequencies. Electromagnetic interference propagates through either conduction or radiation.

• Conducted emissions travel along physical conductors and escape the board through power cords and data cables.

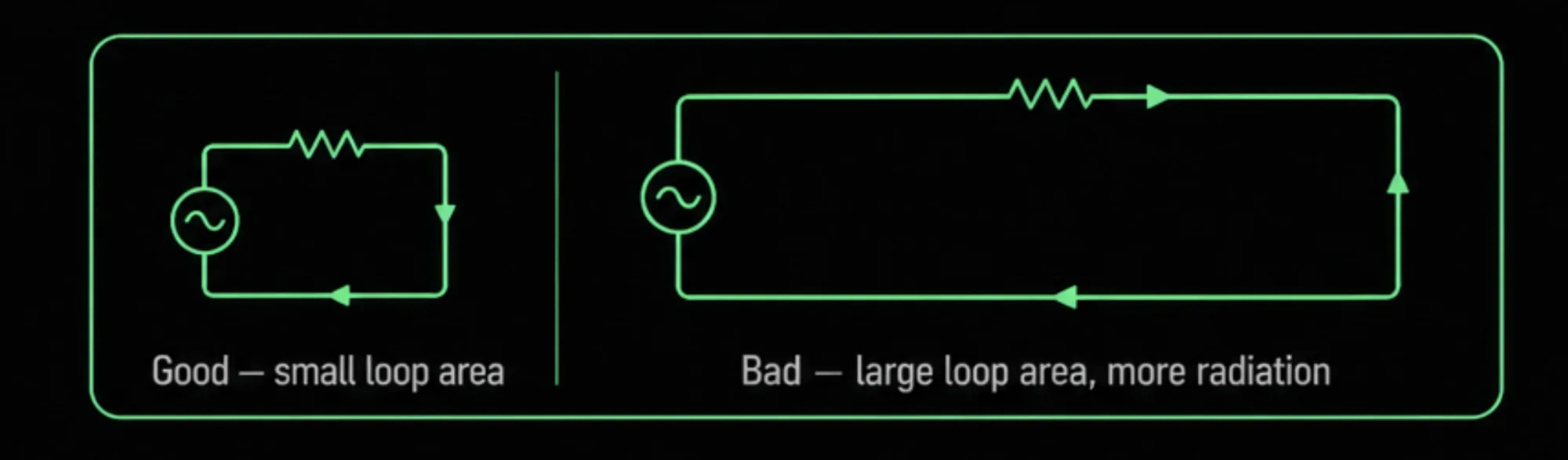

• Conversely, radiated emissions travel through the air as electromagnetic waves. The area of the current loop directly dictates the amount of radiation the circuit emits. A larger loop area corresponds to higher radiated emissions.
• Engineers must visualize both the forward signal path and the invisible return path to control the total loop area effectively.

Certain physical factors directly dictate emission risks:

• Rise Times: Fast-switching signals contain energy at frequencies much higher than the fundamental clock rate. A square wave with a one-nanosecond rise time generates significant harmonics well into the gigahertz range.
• Antenna Efficiency: A trace becomes an efficient radiator when the physical length approaches one-quarter of the signal wavelength. Shortening traces reduces the radiation efficiency.
• Capacitive Coupling: High-frequency voltage spikes couple across physical gaps between traces. Such coupling injects noise into adjacent quiet circuits.

PCB Design for Compliance: Layout Practices That Reduce EMI

Managing electromagnetic interference requires controlling the physical geometry of the circuit. A successful PCB design for compliance focuses on confining electric and magnetic fields. Proper component placement and trace routing eliminate the need for heavy metal enclosures later. Semiconductor manufacturers provide extensive documentation on proper layout techniques.

Managing Ground Planes and Return Paths

Return current follows the path of least impedance. At low frequencies, near DC, that path is simply the route of lowest resistance straight back to the power supply. However, at frequencies above 100 kilohertz, inductive reactance dominates the impedance equation, shifting the lowest-impedance path to a location directly underneath the high-speed signal trace. As a result, the return current spreads across the reference plane in a roughly Gaussian distribution, concentrated directly beneath the trace. This tight coupling between the signal trace and the ground plane is what suppresses noise generation.

Essential grounding rules include:

• Maintain continuous return paths: Never route high-speed signals over a split in the ground plane. A gap forces the return current to take a longer path. Such a detour increases the loop area and generates radiation.
• Use stitching vias: When a signal trace changes layers, the return current must also change layers. Placing a ground via next to the signal via provides a short vertical path for the return current to follow.
• Avoid complex plane splits: Modern designs often favor a single unified ground plane. Engineers achieve isolation through careful component partitioning to avoid noisy digital currents coupling into sensitive analog circuits.
• Keep components close: Grouping associated components tightly minimizes the physical distance the signals must travel. Shorter paths naturally reduce the loop area.

Trace Routing Strategies

Trace geometry is just as critical as ground plane design when it comes to controlling emissions. That's because trace routing influences signal integrity and emissions for the same underlying reason: a trace that radiates poorly is usually also carrying a noisier, less reliable signal. Left uncontrolled, fast-switching signals radiate energy along their entire length, which is why routing guidelines exist specifically to contain those electromagnetic fields. Careful trace management reduces physical loop area and limits crosstalk between adjacent networks, and much of that control comes down to which routing configuration engineers choose. Microstrip traces run along the outer surface of the board, which leaves their electric fields partially exposed to the air. Stripline traces, by contrast, are buried between two internal ground planes, so the surrounding copper absorbs the radiated fields and provides substantially better shielding.

Proven routing guidelines include:

• Minimize trace length: Shorter traces act as less effective antennas. Engineers should place noisy components close together to reduce the total distance a high-frequency signal must travel.
• Route differential pairs tightly: Keeping differential signals close together ensures the opposite magnetic fields cancel each other out. Any asymmetry in trace length or spacing degrades the cancellation effect.
• Bury fast clocks: Routing clock signals on internal layers between two solid ground planes traps the electric fields entirely within the board substrate.
• Control trace impedance: Matching the trace impedance to the source and load prevents signal reflections. A clean signal with no ringing emits far less electromagnetic energy.

Decoupling and Power Distribution

Power distribution is the other major front in the fight against electromagnetic interference (EMI). Switching components pull sudden spikes of current from the power supply. Such transient currents cause voltage drops and generate noise on the power planes. A well-designed power delivery network suppresses the noise at the source. Engineers achieve stable power delivery by placing low-impedance capacitors close to the switching integrated circuits. Notably, every capacitor has a self-resonant frequency, above which the component acts like an inductor.

Effective power distribution rules include:

• Place small capacitors near power pins: Low-value ceramic capacitors respond quickly to sudden current demands. Placing the capacitors immediately next to the integrated circuit minimizes the trace inductance between the capacitor and the pin.
• Minimize via inductance: Connecting decoupling capacitors to the internal power and ground planes requires vias. Placing the vias as close to the capacitor pads as possible reduces the parasitic inductance.
• Use multiple capacitor values: A single capacitor only provides low impedance across a narrow frequency band. Using a mix of bulk and high-frequency capacitors ensures stable power delivery across a wide spectrum.
• Utilize adjacent planes: Placing the power plane immediately next to the ground plane within the layer stackup creates distributed capacitance. Such a structure provides excellent high-frequency noise suppression.

Design for Successful Pre-Compliance Testing

Formal certification labs charge high daily rates. Pre-compliance testing allows engineers to evaluate a prototype in a standard laboratory environment before paying for an anechoic chamber. Finding issues early prevents costly rework. The hardware team can set up a basic testing bench using relatively accessible equipment.

Common Pre-Compliance Equipment

Engineers typically pair a spectrum analyzer with near-field probes to scan the physical board surface. The magnetic-field probe detects currents flowing through loops, while the electric-field probe detects voltages swinging on exposed traces. Sweeping both probes across the board together reveals specific locations radiating excessive energy.

The Iterative Testing Process

Locating an emission spike on a spectrum analyzer display is only the first step. The engineering team must correlate the specific frequency spike to a clock harmonic or a switching power supply on the board. Modern spectrum analyzers feature peak, quasi-peak, and average detectors. Engineers initially use the peak detector for fast frequency sweeps. The team then switches to the quasi-peak detector to match the certification lab's exact measurement methods. The quasi-peak measurement accounts for the repetition rate of a signal, often resulting in a lower measured amplitude for intermittent noise sources.

Steps for effective iteration include:

Preparing for FCC & CE Certification

A successful pre-compliance run gives the hardware team confidence to schedule formal testing. The testing requirements depend heavily on the target market and the regulatory bodies governing the region. The Federal Communications Commission Part 15 regulations strictly dictate emissions for the United States market.

FCC Part 15 vs. CE Certification

The Federal Communications Commission focuses strictly on limiting emissions to prevent interference. Conversely, the European Union requires CE marking. The European process requires passing both emissions testing and immunity testing. Immunity testing verifies the device can withstand electrostatic discharge, fast transients, and external radiated fields without failing.

Navigating the Accredited Lab

Accredited laboratories require specific operating modes to test a device properly. The hardware must run continuously during the evaluation. A static board does not accurately represent real-world operation and leads to invalid test results. Testing chambers use a rotating turntable and an adjustable antenna mast to measure emissions from every possible angle. A successful certification run requires passing the tests with a comfortable margin. Engineers typically aim for emissions at least three decibels below the regulatory limit line. Such a margin accounts for manufacturing variations and testing equipment tolerances.

Preparation requirements for the laboratory include:

• Write specific diagnostic firmware: The hardware must run continuous software to stimulate all data buses and memory interfaces during the test.
• Prepare exact production cabling: The cables attached to a device often act as the primary radiating antennas. Testing with the exact cable lengths and shielding types planned for final production ensures accurate results.
• Set up the physical arrangement: Certification labs test devices on standardized wooden tables placed above a ground plane. The distance between the device and the receiving antenna typically spans either three meters or ten meters, depending on the specific standard.
• Compile technical documentation: Certification labs need detailed block diagrams, schematics, and bill of materials files. The laboratory uses the documentation to understand the circuit architecture and compile the final test report.

A Design Workflow That Reduces Compliance Risk

Planning for regulatory requirements must begin during the initial architecture phase. Engineers should establish a clear strategy for grounding, shielding, and layer stackup before placing a single component. When teams treat electromagnetic compatibility as an ongoing requirement rather than a final hurdle, the product development cycle moves much faster. Consequently, the organization avoids late-stage redesigns and unexpected fabrication costs.

Modern development demands collaborating across electrical, mechanical, and firmware teams to prevent conflicting decisions. A mechanical engineer might propose a plastic enclosure that provides zero shielding. Simultaneously, the electrical engineer relies on a metal chassis to pass emissions testing. Early cross-functional design reviews ensure the mechanical enclosure, the printed circuit board layout, and the firmware operate cohesively to minimize noise.

Documenting layout decisions actively prevents errors during future board revisions. If an engineer routes a differential pair to minimize loop area, another team member might accidentally shift the trace during a later update. Maintaining a centralized record of why specific components sit in certain locations preserves the compliance strategy across the entire project lifecycle.

Managing Workflows with Modern Tools

Flux acts as the ideal platform for managing such technical engineering workflows natively within a browser-based electronic design automation environment.

Specific ways Flux supports compliance engineering include:

• Planning for compliance early: Teams can outline grounding strategies and stackup requirements directly in project documentation tied to the schematic.
• Design reviews focused on EMI: The collaborative environment allows multiple engineers to inspect return current paths and trace routing simultaneously in real time.
• Documenting layout decisions: Engineers can leave specific comments on traces and vias. Such annotations explain the rationale behind a routing choice, which prevents accidental alterations later.
• Validating each revision: Version control features allow teams to track layout changes against pre-compliance testing results easily.
• Collaborating across disciplines: Mechanical and firmware engineers can view the layout directly in the browser without installing complicated software. Such accessibility ensures physical constraints align perfectly with the electrical layout strategy.
• Avoiding last-minute redesigns: Continuous visibility into the design process catches grounding errors immediately, long before the hardware reaches an accredited laboratory.

Start Designing for Compliance Today

Designing for compliance is much easier when your entire team can inspect trace routing and return paths collaboratively. Flux provides a browser-based electronic design automation platform built specifically to support modern hardware workflows. Try Flux today to document layout decisions, perform cross-functional design reviews, and pass regulatory testing on the first attempt.
