Hardware Prototyping: From Concept to a Tested PCB

Hardware prototyping involves turning a concept for an electronic device into a physical design for testing and improvement. Such a process requires understanding exactly when to commit to a custom circuit board, how to plan the initial schematic, and how to execute structured functional testing.

By defining clear objectives for each iteration, hardware teams avoid unnecessary expenses and accelerate the overall design timeline. The following guide details the exact workflow engineers use to design, build, and evaluate a new circuit board successfully.

Key Takeaways

• Evaluating signal integrity constraints dictates exactly when to move from a breadboard to a custom PCB prototype.
• Planning the initial hardware prototyping phase focuses on isolating high-risk circuits for immediate testing using zero-ohm resistors.
• Proper design verification ensures the fabricated board meets all defined electrical engineering requirements before subsequent iterations.

Choose the Right Stage for Hardware Prototyping

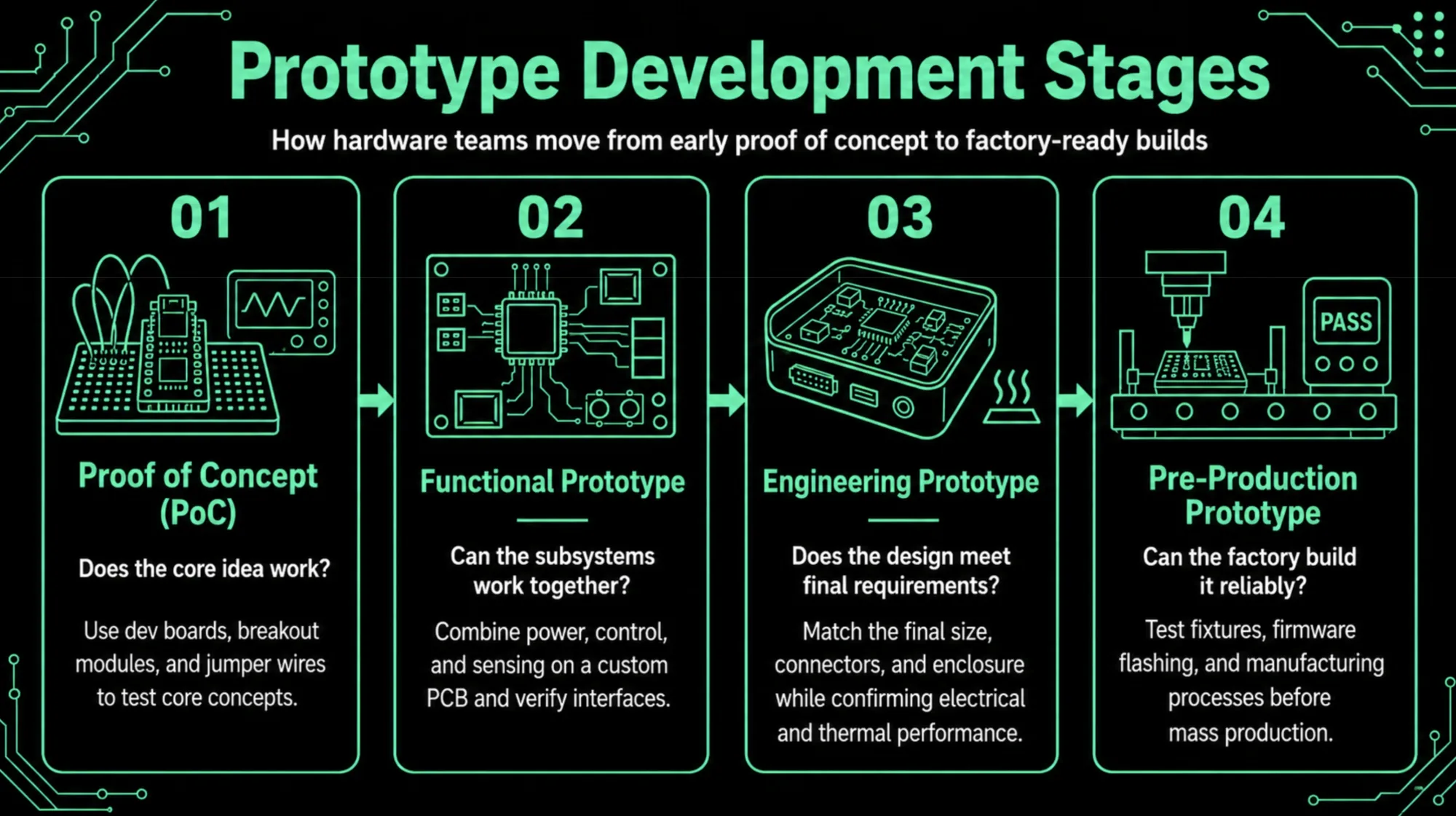

Hardware development typically progresses through four prototype stages. Each stage answers a different engineering question and reduces risk before production.

Proof of Concept (PoC): Does the core idea work?

Engineers use development boards, breakout modules, and jumper wires to test basic physics, circuit concepts, or software algorithms. Form factor and power efficiency are not priorities. At this stage, individual subsystems, such as sensors, wireless modules, power circuits, or control algorithms, are typically tested independently to confirm that each core idea works before they are integrated into a complete system.

Functional Prototype: Can the subsystems work together?

The first custom PCB typically combines power supplies, microcontrollers, sensors, and other subsystems all combined on a single board. Engineers verify that digital interfaces communicate correctly without interference from external wiring. Since the individual concepts were validated during the proof-of-concept stage, the main challenge is now integrating them into one stable system and resolving any interactions between subsystems.

Engineering Prototype: Does the design meet final requirements?

The prototype closely resembles the final product, using the correct connectors, board dimensions, and enclosure design. Engineers finalize the layout and confirm that electrical performance and thermal dissipation remain acceptable within the intended housing.

Pre-Production Prototype: Can the factory build it reliably?

The core circuit design should already be finalized. Teams test assembly fixtures, firmware flashing procedures, automated test jigs, and other manufacturing processes before mass production. They also validate component tolerances, programming access, test-point placement, and assembly yields to identify any issues that could slow production or increase defect rates.

Hardware Prototyping Stages

Know When to Move From Breadboard to PCB

During the proof-of-concept stage, engineers should isolate and test the design's main technical novelty in a controlled setup that supports rapid iteration. Breadboards and development boards work well for early firmware development, basic sensor testing, and repeated design changes. Once the core concept has been validated and refined, it can be integrated into a custom PCB. A custom PCB is usually necessary when:

• Parasitic capacitance disrupts high-speed or RF signals.
• I²C lines fail from excess capacitance.
• SPI clock lines experience ringing or reflections.
• Jumper-wire voltage drops cause microcontroller brownouts.
• Loose wiring makes the setup difficult to move or test reliably.

A custom board provides predictable electrical characteristics, solid ground planes, and structural stability. It also forces the team to finalize pin assignments, select actual surface-mount components, and calculate controlled trace impedances. The transition should be driven by engineering constraints, not an arbitrary deadline.

Design Revision A to Test Your Biggest Risks

The first custom hardware prototype should never attempt to include every planned feature for the final commercial product. Instead, Revision A must validate the highest-risk assumptions. For example, if a new switching power supply topology or an unfamiliar wireless microcontroller introduces uncertainty, the initial layout must isolate and test those specific circuits. Rushing to miniaturize the board on the very first pass is a common engineering mistake. Avoid aggressive miniaturization during the first revision. Prioritize functionality and debugging access by adding:

• Extra test points
• Zero-ohm jumpers for isolating power rails
• Dedicated debug headers
• Larger passive components that are easier to replace by hand

For example, if the microcontroller fails to boot, a zero-ohm resistor can disconnect downstream sensors and isolate their power draw. Document all electrical assumptions before fabrication so the team can troubleshoot efficiently during board bring-up. Every revision should answer a specific technical unknown.

Revision A Planning Checklist:

Build, Bring Up, and Test the Prototype

After exporting the manufacturing files, hardware teams typically utilize Quick-turn PCB services to minimize wait times. Once the bare boards arrive, the prototype PCB assembly phase begins. Depending on complexity, engineers might hand-solder the first unit using solder paste and a hot air station, or they might utilize a specialized assembly house for small batches.

The hardware bring-up process requires extreme caution. Applying full power immediately risks destroying the entire circuit board if a short circuit exists. The initial prototype testing involves visual inspection under a microscope to identify solder bridges or cold joints. Afterward, engineers use a multimeter to measure continuity across all power rails, ensuring no voltage lines short to ground.

Engineers supply initial power using a benchtop supply with strict current limiting enabled. Once voltage levels verify correctly, the team programs basic firmware to toggle GPIO pins and establish communication interfaces. Hardware testing proceeds one subsystem at a time. The engineering team perform functional testing including verifying sensor data, wireless communication, and motor control circuits under varying load conditions.

Documenting every failure and passing result creates a detailed roadmap for the next hardware spin. Proper functional testing separates hardware bugs from software bugs, allowing firmware developers to write code confidently without second-guessing the physical board.

Prototype Testing Matrix

Verify, Validate, and Decide What Comes Next

Evaluating the test results requires separating the concepts of design verification and design validation. While engineers often use the terms interchangeably, they represent two distinctly different evaluation phases within the engineering lifecycle.

Design verification asks a highly specific technical question: Did the team build the circuit according to the exact engineering requirements? Such a process checks trace impedances, voltage ripple, and maximum current limits. Verification involves measuring the hardware against the internal specification sheet. If the requirement states the power supply must deliver two amps, and the board successfully delivers two amps, the design passes verification.

Design validation asks a broader operational question: Did the team build the right product for the intended end user? Hardware validation ensures the user can successfully operate the device in the target environment. If the board delivers two amps but overheats when placed inside a sealed plastic enclosure in the sun, the design fails validation. Real-world conditions often expose flaws that benchtop testing misses completely.

Following successful Engineering validation, the team must execute a decision framework for the next design iteration. Engineers evaluate whether to modify the existing board using jumper wires and cut traces, spin an entirely new circuit board revision, or proceed toward manufacturing preparation.

Decision Framework for the Next Steps

How Flux Helps Teams Prototype Faster

Managing schematic files, layout versions, and component libraries delays the engineering process if teams rely on disconnected desktop tools. Flux supports iterative hardware prototyping by combining collaborative schematic capture and PCB layout into a unified cloud workspace.

Teams utilize reusable projects and verified circuit blocks to accelerate schematic creation. Built-in version history and design reviews allow engineers to track component changes and leave feedback directly on the physical layout. Such an approach enables faster engineering iterations and prevents schematic errors from reaching the fabrication facility.

Try Flux now to streamline the hardware prototyping workflow, collaborate on custom circuit boards in real time, and bring your next physical product to market faster.
