In electrical engineering, MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) are the linchpin components that have revolutionized modern electronics. Among various types of transistors, MOSFETs are particularly significant due to their versatility and efficiency. This article aims to demystify the fundamental concepts surrounding MOSFETs, contrasting MOSFETs with other transistors like BJTs and JFETs, and explaining key MOSFET parameters such as Vgs and Vd.

What is a MOSFET?

A MOSFET is a specific type of FET (Field-Effect Transistor) that utilizes an electric field to control the flow of current between its source and drain terminals. Unlike BJTs (Bipolar Junction Transistors), which are current-controlled devices, MOSFETs are voltage-controlled, offering advantages in terms of power consumption and switching speed.

What is a MOSFET used for?

They're used in a wide range of applications due to their unique properties, such as high input impedance and fast switching capabilities. Some of the primary uses of MOSFETs include:

  1. Switching in Power Electronics: They are widely used in power supply circuits, DC-DC converters, and power inverters due to their efficiency in switching at high frequencies and handling significant power levels.
  2. Amplifiers in Audio and Radio Frequency (RF) Circuits: MOSFETs are used in amplifying signals in audio equipment, such as in the output stages of high-fidelity sound systems, and in RF applications, including transmitters and receivers.
  3. Digital Circuits: They are fundamental components in digital electronics and are the building blocks of integrated circuits like microprocessors and memory chips.
  4. Motor Control: MOSFETs are used in motor control circuits, including in variable speed drives and servo motor controllers, due to their ability to efficiently switch and control high currents.
  5. Automotive Applications: They are used in various automotive applications, such as in electronic control units (ECUs), power management systems, and electric vehicle (EV) components.
  6. Lighting Control: MOSFETs are employed in LED lighting and other lighting systems for dimming control and efficient power management.
  7. Charge Controllers for Solar Panels and Batteries: They are used in solar power systems and battery chargers to regulate voltage and current for efficient charging and power management.
  8. Computer Systems: In computers, they are used in power regulation modules, processors, and memory chips.
  9. Sensors and Detection Systems: Some sensors use MOSFETs to amplify signals or to act as switches in response to environmental changes.
  10. Protection Circuits: They are used in circuits designed to protect electronic devices from overcurrent, overvoltage, or other hazardous conditions.

What are the pins on a MOSFET?

A MOSFET typically has three primary pins, though some specialized versions can have additional pins. Here are the three standard pins:

Pin Name Description
Gate (G) This pin is used to control the MOSFET. By applying a voltage to the gate, you can control the current flow between the drain and source.
Drain (D) This is the pin where the current flows out in an N-channel MOSFET or flows into in a P-channel MOSFET.
Source (S) This is the pin where the current flows into in an N-channel MOSFET or flows out of in a P-channel MOSFET.

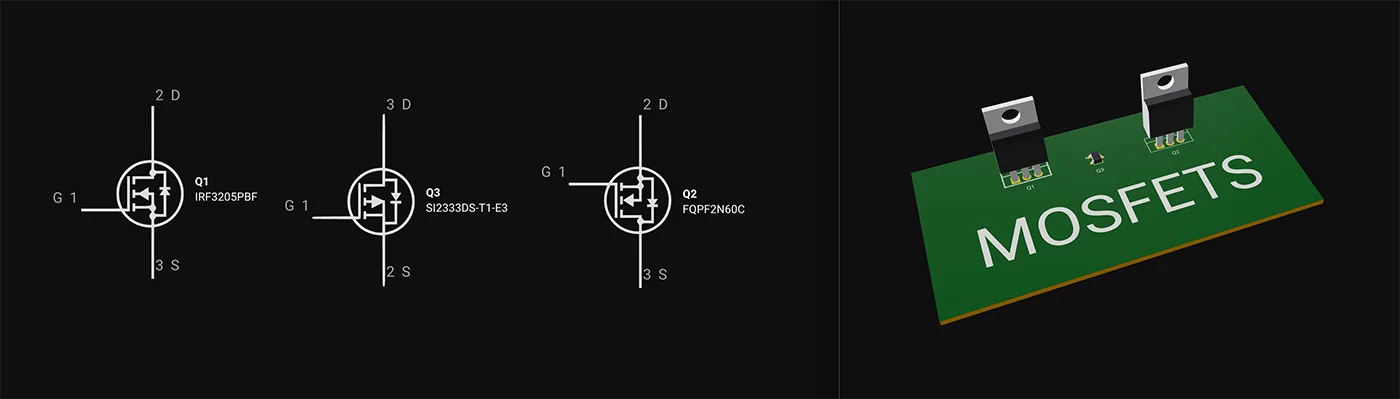

Commonly used mosfets: IRF3205PBF, SI2333DS-T1-E3, and FQPF2N60C

The operation and behavior of the MOSFET depend on whether it's an N-channel (NMOS) or P-channel (PMOS) type, as well as whether it's enhancement-mode or depletion-mode. When looking at the physical package of the MOSFET, it's important to refer to the datasheet or use a multimeter to identify each pin, as the pin configuration can vary depending on the manufacturer and the package style (e.g., TO-220, SOIC, etc.).

Additionally, many MOSFETs have a fourth component, the Body or Substrate, which is often internally connected to the source in discrete MOSFETs. This connection forms what is called the "body diode" or "substrate diode", which can conduct in the reverse direction if biased appropriately.

Always refer to the datasheet of the specific MOSFET you are using for accurate pinout information and specifications.

Types of MOSFETs

  1. NMOS: N-channel MOSFETs, where the channel is made of n-type doped semiconductor material.
  2. PMOS: P-channel MOSFETs, with a p-type doped channel.
  3. IGFET: Insulated-Gate FETs, essentially synonymous with MOSFETs but emphasizing the insulating layer between the gate and the channel.

Is MOSFET a switch or amplifier?

A MOSFET can function both as a switch and as an amplifier, depending on how it is configured in a circuit.

  1. As a Switch: When used as a switch, a MOSFET can turn on or off the flow of current in a circuit. In this mode, it operates mainly in two states: cut-off (off state) and saturation (on state). The gate-source voltage (Vgs) is used to control the state of the MOSFET: In the cut-off state, the MOSFET is off, and no current flows through it. In the saturation state, the MOSFET is fully on, allowing current to flow freely from the drain to the source.
  2. As an Amplifier: MOSFETs are also widely used as amplifiers. In amplifying mode, they operate in the active or linear region, where the output current is a linear function of the input voltage. This allows the MOSFET to amplify the strength of weak signals. MOSFET amplifiers are common in various applications, including audio systems, radio frequency circuits, and more.

Key MOSFET Parameters

Parameter Description
Vgs (Gate-Source Voltage) Vgs is the voltage applied between the gate and source terminals of the MOSFET. In MOSFET operation, Vgs is a critical parameter that determines whether the MOSFET is in the "on" or "off" state. For an NMOS MOSFET, a positive Vgs turns the device on, while for a PMOS MOSFET, a negative Vgs is required.
Vd (Drain Voltage) Vd is the voltage across the drain and source terminals of the MOSFET. It plays a role in determining the drain current and the operating region of the MOSFET, which can be either in the saturation, triode, or cutoff region.

MOSFET vs. Other Transistors

JFET (Junction Field-Effect Transistor)

A JFET is similar to a MOSFET but lacks the insulating layer between the gate and channel. They are generally used in analog signal applications but are less popular than a FET due to higher input capacitance and lower transconductance.

BJT (Bipolar Junction Transistor)

BJTs are current-controlled devices and are generally faster than MOSFETs. However, a BJT consumes more power and is less input-impedance-friendly compared to a FET.

Doping and Depletion in MOSFETs

The channel in a MOSFET is made of doped semiconductor material. Doping refers to the introduction of impurities into the semiconductor to increase its conductivity. The term "depletion" refers to the region near the junction where mobile charge carriers are depleted, affecting the MOSFET's electrical characteristics.

Why MOSFETs are Important

  1. Low Power Consumption: Being voltage-controlled devices, MOSFETs consume less power, making them ideal for battery-operated applications.
  2. High Input Impedance: This feature makes MOSFETs suitable for high-frequency applications.
  3. Versatility: MOSFETs can function as switches, amplifiers, and even in complex integrated circuits.

Understanding the fundamentals of a MOSFET, including key MOSFET parameters like Vgs and Vd, as well as the differences between NMOS, PMOS, and other types of transistors such as BJTs and JFETs, is crucial for anyone venturing into the field of electrical engineering. MOSFETs' low power consumption, high input impedance, and versatility make them indispensable in modern electronics.

By grasping these MOSFET basics, you'll be well-equipped to delve deeper into the intricacies of MOSFET semiconductor devices and their applications in various circuits.
