Arduino Code for Beginners: How to Write Your First Sketch

Arduino Programming Basics

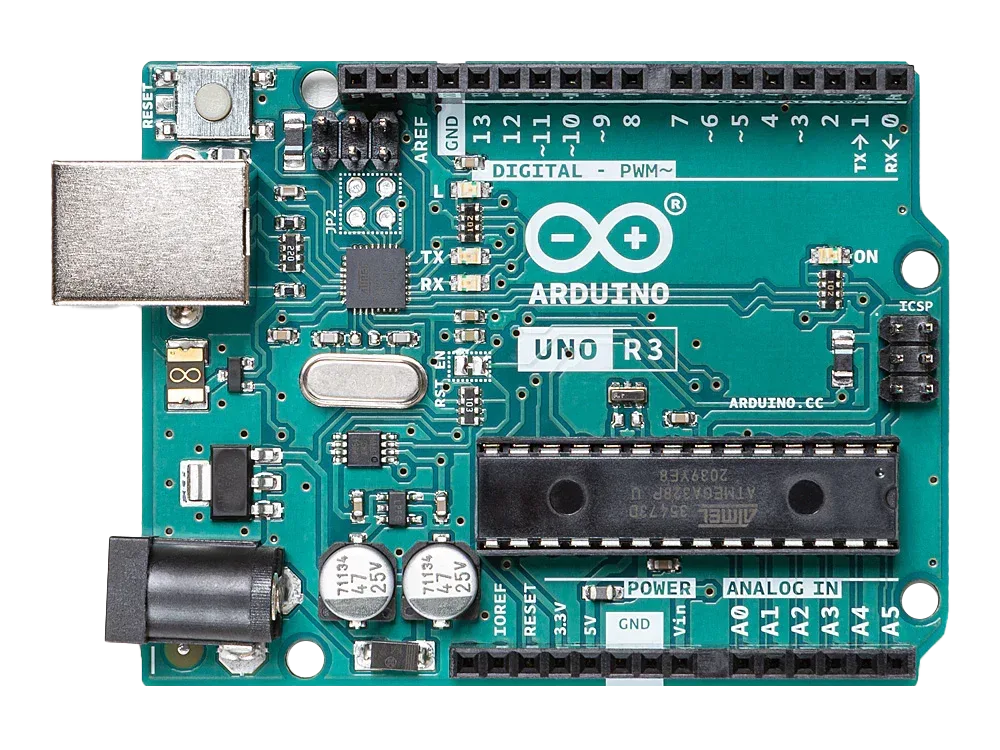

Let's first grasp the foundational concepts of Arduino. At its core, Arduino is a microcontroller-based platform designed to facilitate the development of electronic projects. Like the popular Arduino Uno boasting an atmega328p microchip, a microcontroller is a compact computing device specifically engineered to perform dedicated tasks.

Arduino revolves around writing and executing code to bring your creations to life. So, let's check out the technicalities of Arduino code and understand how it functions.

How to Use the Arduino IDE

The Arduino IDE, or Integrated Development Environment, is the main workspace for writing, checking, and uploading code to an Arduino board. Its straightforward interface keeps the core development steps in one place, making it easier to move from a sketch to a running project.

Key Components of the Arduino IDE

1. Sketch: The Sketch area holds your Arduino code. It is where you write, edit, save, and organize the instructions that your board will execute.
2. Serial Monitor: The Serial Monitor is your communication lifeline to the Arduino board. This tool facilitates real-time communication, assisting you in debugging and monitoring data. When your code is running on the Arduino board, the Serial Monitor offers insight into its operation, aiding you in identifying and rectifying any issues that may arise.
3. Tools: Under the Tools menu, you will discover a treasure trove of options to fine-tune your Arduino environment. This is where you configure critical aspects of your Arduino setup. When tailoring your development environment, be aware of the following tools at your disposal:

• Board Type: Arduino offers an array of boards, each with its unique capabilities. Whether you're working with the classic Arduino Uno or a more advanced board like the Arduino Mega, selecting the appropriate board type ensures compatibility and unlocks advanced features.
• Port Configuration: Port selection is a crucial step in ensuring your code reaches the correct destination. It's where your Arduino IDE communicates with the physical Arduino board. Pay attention to port selection, especially if you have multiple devices connected.
• Programmer Settings: For advanced users, the Programmer Settings enable you to work with different programming methods and tools, adding flexibility to your coding endeavors.
• Serial Plotter: Visualize Your Data This tool is a visual delight for anyone working with sensors and data visualization. The Serial Plotter provides real-time graphing capabilities, making it simple to observe changing values. It's perfect for tracking sensor data or any dynamic information that needs to be visually represented. Whether you're monitoring distance measurements, temperature changes, or any other data, the Serial Plotter transforms raw numbers into meaningful visual insights.

Write Your First Arduino Program

The Code

Today we'll create a straightforward "Hello, Arduino!" program employing the void setup() and void loop() functions.

When it comes to Arduino code, you'll frequently encounter the term "void." In the below context, "void" indicates that a particular function doesn't return any values. It's worth noting that "setup()" and "loop()" are fixed names for functions in Arduino code. The "setup()" function is where you initialize variables, and it runs once when the board powers up. The "loop()" function, on the other hand, is the core of your program, running repeatedly to control your project.

void setup() { // Initialization code runs once
Serial.begin(9600); // Initialize serial communication
pinMode(13, OUTPUT); // Set digital pin 13 as an output
}

void loop() {  // Main code loop runs repeatedly
digitalWrite(13, HIGH); // Turn on the LED on pin 13
delay(1000);           // Wait for one second
digitalWrite(13, LOW);  // Turn off the LED on pin 13
delay(1000);           // Wait for one second
Serial.println("Hello, Arduino!"); // Send message to the serial monitor
}

 Let's break down the technical aspects of this code:

• pinMode: This function configures the mode of a pin as either input or output. In our example, it designates digital pin 13 as an output.
• digitalWrite: It allows you to control the state of a digital pin. We employ it to toggle the LED on (HIGH) and off (LOW) on pin 13.
• Serial.println: This function transmits data to the serial monitor, a crucial tool for debugging and monitoring your Arduino project.

The Project, Blinking LED

The quintessential "Blink" project is Arduino's equivalent to "Hello, World!" in the programming universe. It's a basic exercise involving the toggling of an LED. In this project, an LED connected to digital pin 13 blinks on and off at one-second intervals. We've already written the code for this above, so now let's see how we can apply it.

Components Required

• Arduino board (e.g., Arduino Uno)
• LED (any color)
• 220-ohm resistor
• Breadboard
• Jumper wires

Connect the components as follows:

1. Arduino Board: Connect your Arduino board to your computer using a USB cable. This provides power to the board and allows for code upload.
2. LED (Light-Emitting Diode): Take an LED of any color and note that it has two legs, a longer one and a shorter one. The longer leg is the anode (positive), and the shorter leg is the cathode (negative).
3. 220-ohm Resistor: Place the 220-ohm resistor (red-red-brown) between the cathode (shorter leg) of the LED and the ground (GND) on the Arduino board. One end of the resistor connects to the cathode, and the other connects to the Arduino board's GND.
4. Breadboard: Place the LED's cathode connected to the resistor into the breadboard. This step is crucial for stability.
5. Jumper Wires: Use jumper wires to connect the anode (longer leg) of the LED to digital pin 13 on the Arduino board. This allows you to control the LED using your Arduino code.

With your components interconnected, apply and upload the code written above to set the LED blinking!

Arduino Functions, Libraries, and Next Steps

As you continue your journey into the captivating realm of Arduino code, it's essential to broaden your understanding of some fundamental concepts and explore the wealth of tools at your disposal.

The Power of Functions

Functions are the backbone of Arduino programming. We've already used a couple, but let's talk about functions in general. Functions are reusable blocks of code designed to perform specific tasks. Each function has a name, a set of parameters it can accept, and a return type, which specifies the data it provides after executing.

Functions facilitate modularity, making your code more organized and easier to maintain. Here are some key concepts to grasp:

• Function Syntax: Functions are defined with a name, parameters (if any), and a return type. They can be called multiple times within your code, promoting efficiency and reusability.
• Return Types: Functions may or may not return a value. Knowing the return type of a function helps you understand what to expect when you use it in your code.

Exploring Libraries: A World of Connectivity and Creativity

Libraries are the secret sauce that amplifies Arduino's capabilities. They are pre-written code modules that extend the functionality of your Arduino board. Let's touch upon a few libraries that can serve as inspiration for your projects:

• Connectivity Libraries: Arduino offers a plethora of connectivity libraries that empower your projects to communicate with various external devices and networks. Whether it's Ethernet, Wi-Fi, or Bluetooth, these libraries pave the way for IoT applications, remote control, and data exchange.
• Servo Libraries: The Servo library is a favorite among Arduino enthusiasts, allowing you to control servo motors with precision. From robotics to automation, servo motors bring smooth and controlled motion to your projects.
• Audio Libraries: Audio enthusiasts can dive into Arduino's audio libraries, enabling you to generate sounds, music, and even process audio signals. Whether you're designing a musical instrument or adding sound effects to your projects, the possibilities are vast.

Some Interesting Advanced Functions

To spark your creativity and inspire your journey, here are a few advanced functions and ideas:

• AnalogRead: You'll probably use digitalread early on your Arduino journey, but go beyond using digitalread and explore the AnalogRead function. It allows you to read analog signals from sensors, enabling more precise data collection and control.
• Wire Library: The Wire library is your gateway to I2C communication. With it, you can connect multiple devices, sensors, or displays to a single Arduino, creating complex interconnected systems.
• Advanced Mathematical Functions: Utilize complex mathematical functions to solve intricate problems or manipulate data in unique ways. From trigonometric functions to exponential calculations, your Arduino can be a useful computational tool.

Conclusion: Your Path to Arduino Mastery

As you set forth on your journey as a digitalwriter in the Arduino universe, remember that practice and experimentation are your allies. Embrace the rich array of functions and libraries at your disposal. Seize your Arduino, commence coding, and unleash the infinite potential residing within your creative ideas!
