STM32: Things You Need to Know

Intro to STM32 Microcontrollers

STM32 is STMicroelectronics’ family of 32-bit microcontrollers based on Arm Cortex-M processors. The range covers general-purpose, high-performance, low-power, and wireless applications, from simple controllers to connected devices. Choosing an STM32 means matching a specific part’s memory, peripherals, package, and power requirements to your design—not just choosing the fastest core.

If you’re a beginner—whether a student, hobbyist, or engineer—this guide will help you understand the STM32 ecosystem, its series, and the tools needed to kickstart your journey.

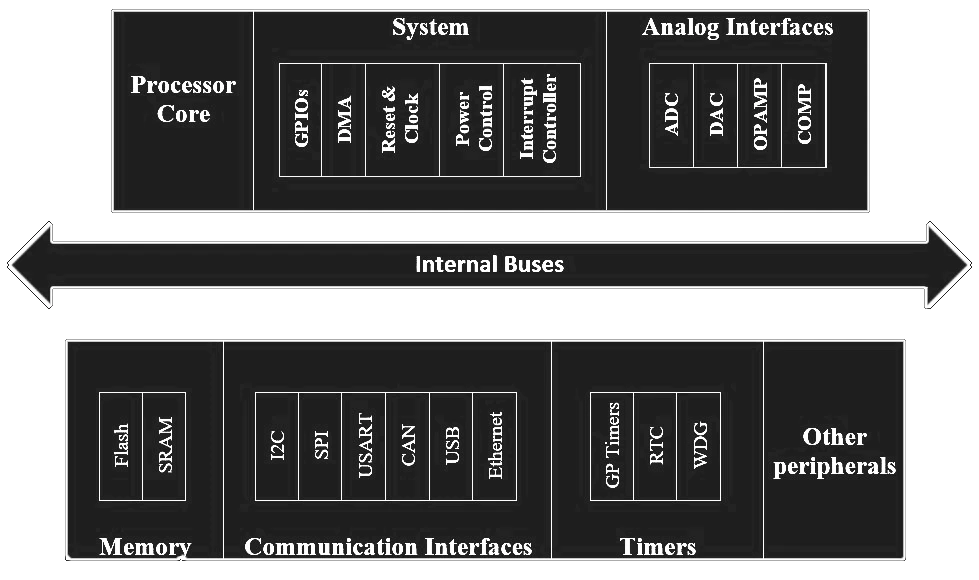

What Is Inside an STM32 Microcontroller?

A typical microcontroller includes a processor, memory and Input/Output (I/O) peripherals on a single chip. Its components may be extended to include: Digital I/O, Analog I/O, Timers, Communication interfaces, Watchdog (a timer that is responsible for the detection of timed out or locked instruction).

The processor core executes firmware instructions, while on-chip memory and peripherals handle storage, timing, communication, and input/output. The available peripherals, pin assignments, and electrical limits depend on the exact STM32 part number and package.

STM32 Microcontroller Families Overview

The categories below are a starting point for comparing STM32 microcontroller families, not an exhaustive product list. Before selecting a device for a PCB, confirm the required interfaces, flash and RAM capacity, supply voltage, package, and lifecycle status in its datasheet.

• High Performance (e.g., STM32F7, STM32H7): Optimized for processing-intensive tasks, such as graphics or audio processing.
• Mainstream (e.g., STM32F1, STM32G4): Ideal for general-purpose applications, balancing cost and performance.
• Ultra Low Power (e.g., STM32L4, STM32L5): Designed for battery-operated devices, focusing on efficiency.
• Wireless (e.g., STM32WB): Includes built-in Bluetooth and IEEE 802.15.4 wireless communication.

How to Choose an STM32 MCU

• STM32F0 (Mainstream)
  Based on the Arm Cortex-M0 processor, running up to 48 MHz. Optimized for low cost and designed to compete with 8-bit and 16-bit platforms.
• STM32F1 (Mainstream)
  Based on the Arm Cortex-M3 processor, with a maximum clock speed of 72 MHz. A general-purpose microcontroller, widely popular for hobby projects.
• STM32F2 (High Performance)
  Based on the Arm Cortex-M3 processor, with a clock speed of up to 120 MHz. Offers optimized performance for more demanding applications.
• STM32F3 (Mainstream)
  Based on the Arm Cortex-M4 processor, featuring FPU and DSP instructions, with a speed of up to 72 MHz. Ideal for mixed-signal applications.
• STM32F4 (High Performance)
  Based on the Arm Cortex-M4 processor with FPU and DSP instructions, running at up to 180 MHz. Known for high performance, frequently used in multimedia and industrial projects.
• STM32F7 (High Performance)
  Based on the Arm Cortex-M7 processor with FPU and DSP instructions, running at up to 216 MHz. Some devices offer migration paths from STM32F4 parts, but verify pin assignments, package, power requirements, and software compatibility before treating one as a replacement.

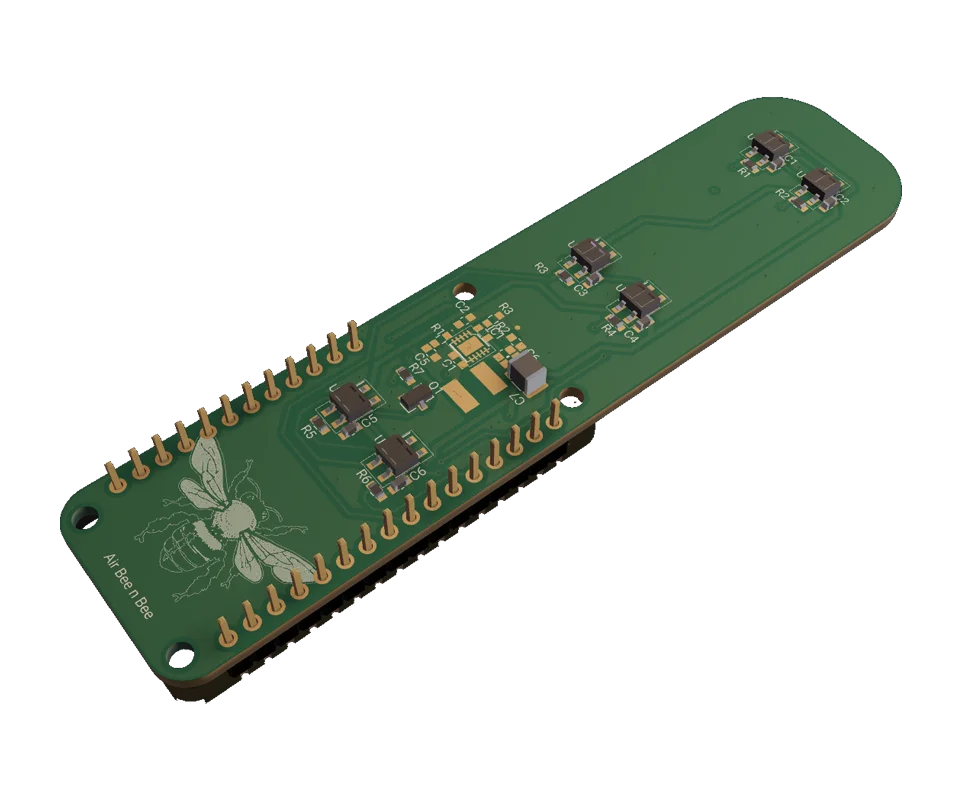

Bee Hotel

• STM32G0 (Mainstream)
  Based on the Arm Cortex-M0+ processor, with a speed of up to 64 MHz. Optimized for efficiency, competing with 8-bit and 16-bit microcontrollers.
• STM32G4 (Mainstream)
  Based on the Arm Cortex-M4 processor with FPU and DSP instructions, running at up to 170 MHz. This series is the successor of the STM32F3 and is ideal for mixed-signal applications.
• STM32H7 (High Performance)
  Based on the Arm Cortex-M7 processor, with clock speeds and memory architectures that vary by subfamily. Some H7 devices run at up to 480 MHz; H7R/S devices reach up to 600 MHz. Certain models also include a Cortex-M4 core. Select by the exact device specifications rather than assuming all H7 parts have the same resources.
• STM32L0 (Ultra Low Power)
  Based on the Arm Cortex-M0+ processor, running at up to 32 MHz. Optimized for low-power applications, such as wearables and battery-operated devices.
• STM32L1 (Ultra Low Power)
  Based on the Arm Cortex-M3 processor, with a speed of up to 32 MHz. Tailored for applications requiring both low power consumption and performance.
• STM32L4 (Ultra Low Power)
  Based on the Arm Cortex-M4 processor with FPU and DSP instructions, running at up to 80 MHz. Designed for ultra-low power use cases with better efficiency.
• STM32L4+ (Ultra Low Power)
  Based on the Arm Cortex-M4 processor with FPU and DSP instructions, with a clock speed of up to 120 MHz. Offers higher performance than the STM32L4 series while maintaining low power consumption.
• STM32L5 (Ultra Low Power)
  Based on the Arm Cortex-M33 processor, running at up to 110 MHz. Provides enhanced security features and is optimized for IoT and battery-powered applications.
• STM32WB (Wireless)
  Based on the Arm Cortex-M4 processor with FPU and DSP instructions, running at up to 64 MHz, alongside a second Arm Cortex-M0+ processor acting as a network processor. Supports Bluetooth 5 and IEEE 802.15.4 standards, making it ideal for wireless IoT solutions.

How to use STM32 MCU?

There are two ways to use an STM32 MCU which are:

• Develop and design your own board
• Using existing STMicroelectronics boards

Environmental Exposure Risk Meter

Essential STM32 Features for Development and Debugging

Features vary by STM32 device and package. Confirm that the exact MCU exposes the interfaces you need, and reserve their pins in the schematic before moving to PCB layout:

• USB OTG (On-The-Go)
  Many STM32 MCUs, especially in the STM32F4 and STM32H7 series, offer USB OTG functionality. This feature allows the microcontroller to act both as a USB host and a device, enabling easy communication with peripherals like flash drives, keyboards, or sensors. USB OTG makes STM32 ideal for applications like portable devices or data loggers.
• SWD (Serial Wire Debug)
  For debugging and programming, STM32 microcontrollers support SWD. This is a streamlined, two-wire alternative to traditional JTAG interfaces, making it more efficient while reducing pin usage. SWD allows developers to debug their code in real-time and monitor performance directly on the microcontroller.
• UART (Universal Asynchronous Receiver-Transmitter)
  UART communication is available across almost all STM32 MCUs, allowing serial communication between the microcontroller and external devices like sensors, computers, or displays. This feature is particularly useful for applications requiring simple, low-overhead data exchange, such as data logging or wireless modules.
• Debugging with STM32
  STM32 provides robust debugging options, supporting tools like ST-Link, which enables seamless flashing and debugging through SWD. Additionally, most development boards come with built-in debug interfaces, ensuring developers can quickly identify issues and optimize performance.

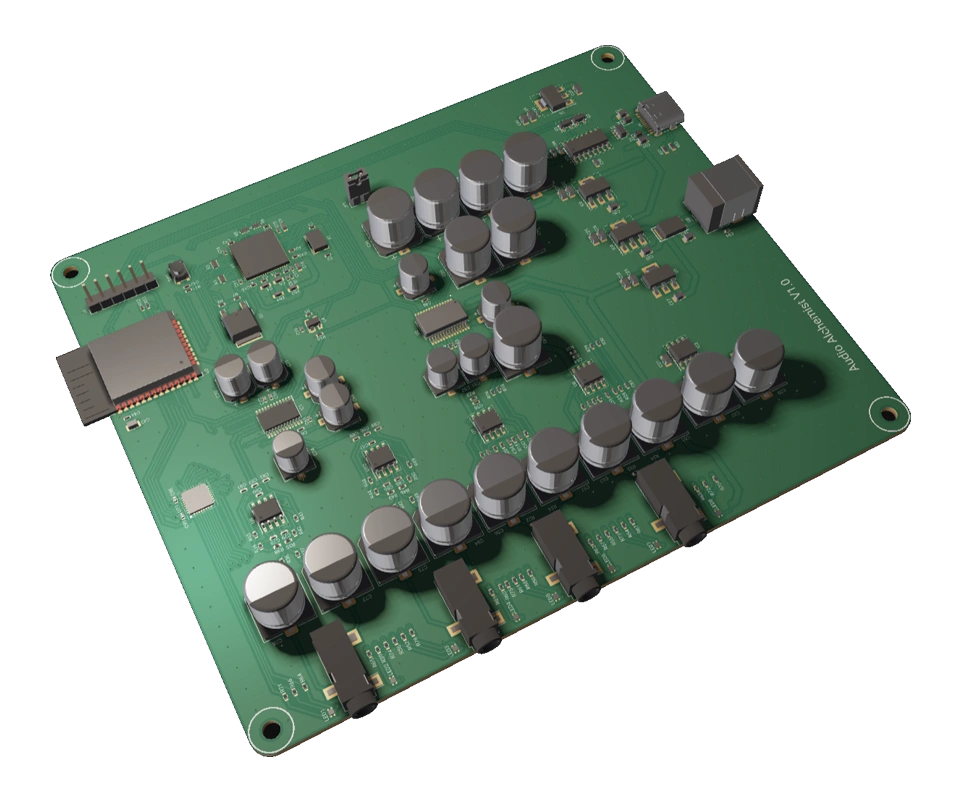

Portable Audio DSP

Choosing the Perfect STM32 Development Board for Your Application

An ST Nucleo or Discovery board provides a practical route to a first STM32 project. Compare its MCU, exposed pins, onboard peripherals, and debugger with your application; third-party boards may require a separate debug probe.

Nucleo Boards

• Perfect for beginners, featuring built-in ST-Link debugger.
• NUCLEO-F103RB – STM32F103 MCU with 128kB FLASH memory.

Discovery Kits

• Include additional sensors and displays for prototyping.
• STM32F407G-DISC1 – Ideal for multimedia projects with STM32F4.

Black Pill Board

• Affordable, compact, and widely available on platforms like AliExpress.
• Example: Common Black Pill boards use an STM32F401CC or STM32F411CE. The STM32F103C8T6 is commonly associated with Blue Pill boards. Check the exact board schematic and MCU marking, since third-party versions vary and often lack an onboard ST-Link debugger.

STM32 Software Tools and IDEs

Once you’ve chosen a development board, select tools that support that exact MCU and board. The options below have different configuration workflows and licensing terms:

• STM32CubeIDE:
  STMicroelectronics’ C/C++ development environment for building and debugging STM32 firmware. For STM32CubeIDE 2.x, install STM32CubeMX separately for device configuration and code generation, then import the generated project into the IDE.
• PlatformIO:
  A versatile development environment that supports multiple platforms, including STM32.
• STM32duino:
  For those familiar with Arduino, this environment brings the Arduino experience to STM32 boards.
• Keil MDK:
  An Arm development toolchain that supports STM32 devices. Check the current edition, device support, and license terms before selecting it; free-use options and limits can differ by offering.

For new IoT projects, use a maintained toolchain that supports your chosen STM32. Arm has ended active maintenance of Mbed OS and announced the platform’s end of life, so older cloud-based Mbed tutorials should not be the default starting point for a new design.

How to Get Started: A Step-by-Step Workflow

1. Setting Up Your Development Board

• Connect the board to your computer via USB.
• Install the STM32CubeIDE or your preferred IDE.
• Connect through the onboard ST-Link if your board includes one; otherwise connect a compatible external SWD probe and verify the target voltage and wiring.

2. Configuring Your Project with STM32CubeMX

STM32CubeMX simplifies the configuration process by generating initialization code. You can:

• Select your microcontroller.
• Configure pins, clocks, and peripherals through a graphical interface.
• Generate C code, ready to use in STM32CubeIDE.

3. Write and Code Your First STM32 Program

Start with a generated STM32CubeMX project for your exact board. Configure its LED pin as a GPIO output, then use the following loop in the user-code section of main.c. This example assumes you assigned the label LED to that pin; retain the generated initialization and interrupt-handler code rather than treating the snippet as a complete standalone program.

/* After the generated HAL, clock and GPIO initialization.
 * Label your board's LED output pin "LED" in STM32CubeMX.
 * Place this inside the generated while (1) loop.
 */
HAL_GPIO_TogglePin(LED_GPIO_Port, LED_Pin);
HAL_Delay(500);

Key Specifications and STM32 Pricing Overview

Common Challenges and How to Overcome Them

• Problem: "The IDE doesn't recognize my board."
  Solution: Ensure drivers for the ST-Link debugger are installed. Check connections and firmware.
• Problem: "I don't know which STM32 series to use."
  Solution: Start with STM32F1 or F4 series if you're a beginner. These series have abundant resources online.

Where to Buy STM32 MCUs and Development Boards

You can find STM32 MCUs and development boards from trusted vendors, such as:

• Official STMicroelectronics website
• Mouser Electronics and Digi-Key
• AliExpress and Amazon for budget boards like the Black Pill

Why Choose STM32?

STM32 microcontrollers are an excellent choice for both beginners and advanced developers. They offer a wide range of features, low power consumption, and support for IoT, wireless communication, and industrial automation. With STM32Cube tools and free IDEs, you can build your projects faster and more efficiently.

Whether you’re working on a simple blinky LED project or a complex IoT solution, STM32 has the right series to fit your needs. Get your development board, set up your environment, and start building today!
