What Is a Multilayer Ceramic Capacitor: Key Features and Applications

Multilayer Ceramic Capacitor Basics

Understanding MLCC Construction

At its core, a multilayer ceramic capacitor is a passive component that stores electrical energy in an electric field. Its construction involves layers of ceramic material, typically composed of barium titanate, sandwiched between metal electrodes. These layers, when stacked, create a multilayered structure, hence the name.

The dielectric material used in MLCCs significantly influences their performance and Capacitance–which can range from a few picofarads to several microfarads. This flexibility in capacitance makes MLCCs versatile components that can be tailored to meet the diverse needs of electronic circuits. Common dielectric materials include C0G, X7R, and X5R, each offering distinct properties that cater to specific applications.

C0G (NP0) – Precision and Stability

C0G, also referred to as NP0, is a dielectric material that contributes to the stability of multilayer ceramic capacitors (MLCCs). C0G is a class I dielectric material. The primary composition of C0G dielectrics is typically a mix of finely ground paraelectric materials. The most common material used is titanium dioxide (TiO2), which is often mixed with additives like magnesium titanate (MgTiO3) or calcium titanate (CaTiO3). These materials are chosen for their stable electrical properties and minimal variation in capacitance with temperature.

Dielectric Properties

Temperature Coefficient of Capacitance (TCC): C0G MLCCs are renowned for their minimal temperature coefficient of capacitance (TCC). The TCC of C0G is near-zero, signifying that the capacitance remains nearly constant across a wide temperature range, making C0G capacitors ideal for stable capacitance under the required temperature.

Voltage Independence

‍C0G has minimal dependence on applied voltage. This ensures that the capacitance remains consistent even under varying voltage levels.

Low Dielectric Losses

‍C0G capacitors exhibit low dielectric losses, indicating minimal dissipation of electrical energy as heat, crucial for applications where efficiency and signal integrity are critical.

X7R and X5R – Versatility and Size Efficiency

X7R and X5R are dielectric materials widely used in MLCCs, offering a balance between versatility and size efficiency. X7R and X5R are class II dielectrics. These materials are predominantly based on a ferroelectric material, barium titanate (BaTiO3). To achieve the desired dielectric properties, various dopants and additives are introduced, such as magnesium oxide (MgO), yttrium oxide (Y2O3), and zirconium oxide (ZrO2). The addition of these dopants helps in modifying the grain structure and electrical properties of the barium titanate, tailoring it for specific capacitance and temperature coefficient requirements. X7R and X5R materials are engineered to offer a compromise between high capacitance values and stability over a broad temperature range.

Dielectric Properties

Moderate Temperature Coefficient

While not as temperature-stable as C0G, X7R and X5R materials are well-suited for applications where a balance between size, cost, and performance is essential.

Higher Capacitance Density

The incorporation of additives in X7R and X5R dielectric materials allows these capacitors to achieve higher capacitance values in smaller physical sizes. This is advantageous for applications where space efficiency is a priority, and a higher capacitance is required.

Diving into Specifics – X7R, X5R, and C0G Applications

X7R – Broad Applicability

X7R MLCCs find widespread use in applications where a balance of size, capacitance stability, and cost-effectiveness is crucial. Common applications include power supply filtering, coupling and decoupling, and general-purpose signal conditioning.

X5R – Compact and Stable

These capacitors are commonly employed in consumer electronics, such as smartphones and tablets, where space constraints and performance are equally critical.

C0G – Precision in Demanding Environments

In environments demanding precision and stability, C0G MLCCs shine. These capacitors are often chosen for high-frequency applications, RF circuits, and critical timing elements where deviations in capacitance can have significant repercussions on performance.

MLCC Types and Applications

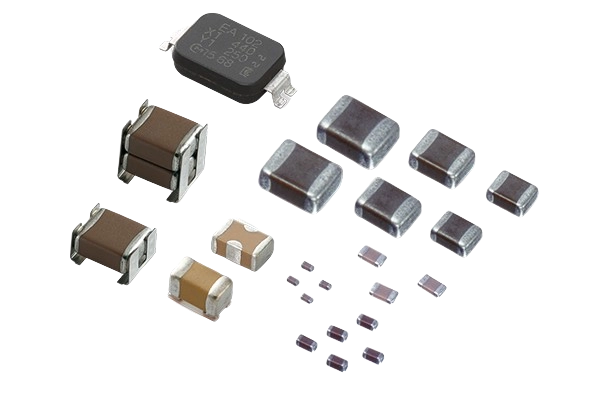

MLCC Variants – Leaded and SMD

Multilayer ceramic capacitors are available in both leaded and surface-mount device (SMD) configurations. Leaded MLCCs have protruding leads for through-hole mounting, offering ease of manual assembly. SMD MLCCs are designed for automated assembly processes, contributing to the miniaturization of electronic devices.

Exploring Niche Applications – Tantalum Capacitors and MLCCs

While MLCCs dominate the capacitor landscape, tantalum capacitors deserve a mention. Tantalum capacitors offer high capacitance density and reliability, making them suitable for applications where space is at a premium and extended operational life is crucial.

Key Considerations in MLCC Selection

Dielectric Choices – Impact on Performance

The dielectric material used in an MLCC is a critical factor influencing its performance. Engineers must carefully consider the trade-offs between precision, size, and temperature stability when selecting C0G, X7R, or X5R variants.

Equivalent Series Resistance (ESR) – A Critical Parameter

ESR is a measure of the opposition a capacitor presents to the flow of alternating current. Low ESR is crucial in applications where high-frequency performance is paramount, such as in power supply decoupling.

SMD or Leaded – Tailoring to Assembly Needs

Leaded MLCCs offer simplicity in manual assembly, while SMD variants contribute to automated assembly processes, enabling efficient mass production.

The Future of MLCCs

Capacitance Density Breakthroughs

Researchers are actively exploring methods to increase the capacitance density of MLCCs. One avenue of exploration involves advancements in materials engineering, seeking new dielectric formulations to push the boundaries of capacitance values with an emphasis on maintaining stability across a broad temperature range. Additionally, researchers are investigating techniques to optimize the stacking of ceramic layers within MLCCs, aiming for more efficient use of space without sacrificing performance.

Integration of Advanced Manufacturing Techniques

Additive manufacturing, such as 3D printing of capacitors, is being investigated for its potential to create intricate structures that optimize electrical properties.
